RWLED3T105SFY
RWLED3T105SFY
- Ideal for entrance roadways, collector roads, and single-sided roads
- 27 year lifespan dramatically reduces maintenance and re-lamping costs
- Precision optics deliver maximum downward street side lumens with uniformity and minimal glare
- Industry-leading 5G vibration rating per ANSI C136.31
- Easy-access electrical compartment makes wiring fast and secure
- 10-Year, No-Compromise Warranty
Performance
| Watts | 105W |
| Color Temp | 3000K (Warm) |
| Lumens | 11,829 lm |
| Efficacy | 109.7 lm/W |
| Color Accuracy | 71 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.89A |
| 208V | 0.58A |
| 240V | 0.50A |
| 277V | 0.44A |
| Input Watts | 107.8W |
Dimensions
Weight: 31.0 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations as a downlight
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
IP Rating
Ingress protection rating of IP66 for dust and water
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Optical
IES Classification
The Type III distribution is ideal for roadway, general parking and other area lighting applications where a larger pool of lighting is required. It has greater streetside (transverse) throw, allowing the light to project outward and fill the area.
Construction
Vibration Rating
Industry-leading 5G vibration rating per ANSI C136.31
Electrical
Drivers
Two Drivers Constant Current, Class2, 1400mA, 100-277V, 50/60Hz, 0.8A, Power Factor 99%
THD
5.9% at 120V, 11.9% at 277V
Power Factor
99.6% at 120V, 94.5% at 277V
Recently Viewed Products
LOT4T160/480/D10/UPA
Area Lights 20585 Lumens Lotblaster 160W Type Iv 0-10V Dimming 480V Universal Pole Adapter Bronze
HALV18L927-NL-CU
Architectural 366 Lumens Halv Forward Light 25W 90Cri 2700K Natural Leaves Lens Copper Finish

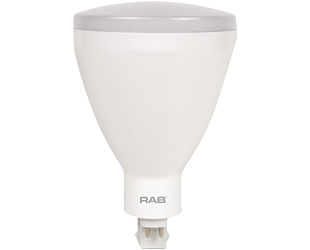

PLT-16-V-850-DIR
