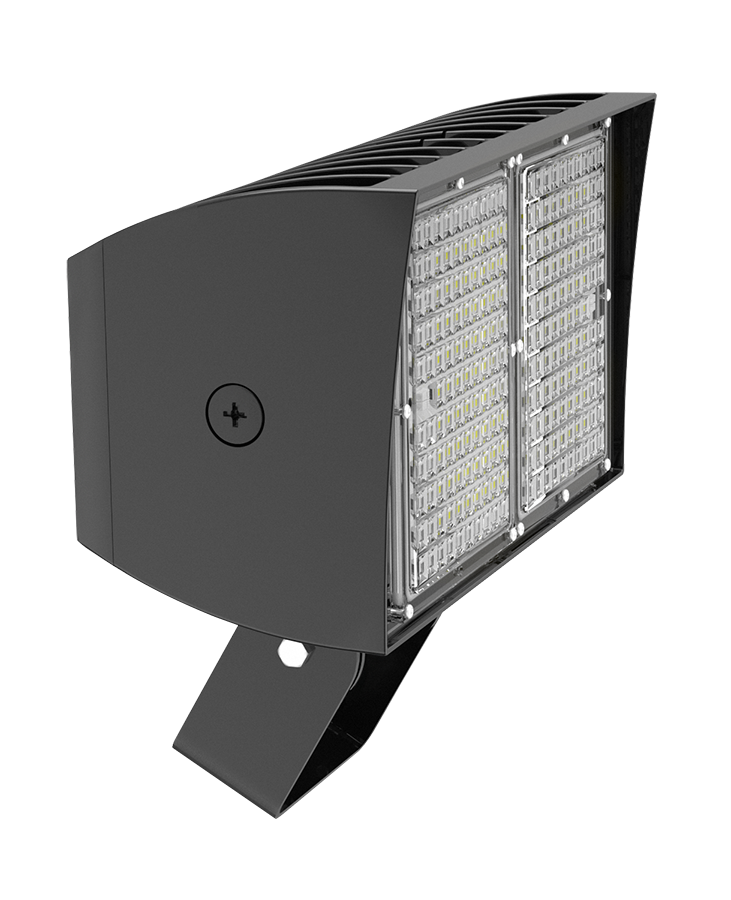

PIPXL70TN/D10
PIPXL70TN/D10
- Ultra-high efficiency
- DLC Premium
- 0-10V Dimming, standard
- 60,000-Hour LED lifespan
- 5-Year, limited warranty
Performance
| Watts | 70W |
| Color Temp | 4000K (Neutral) |
| Lumens | 11,106 lm |
| Efficacy | 154.5 lm/W |
| Color Accuracy | 71 CRI |
| L70 Lifespan | 60,000 Hours |
| Type | Constant Current |
| 120V | 0.60A |
| 208V | 0.34A |
| 240V | 0.30A |
| 277V | 0.26A |
| Input Watts | 71.9W |

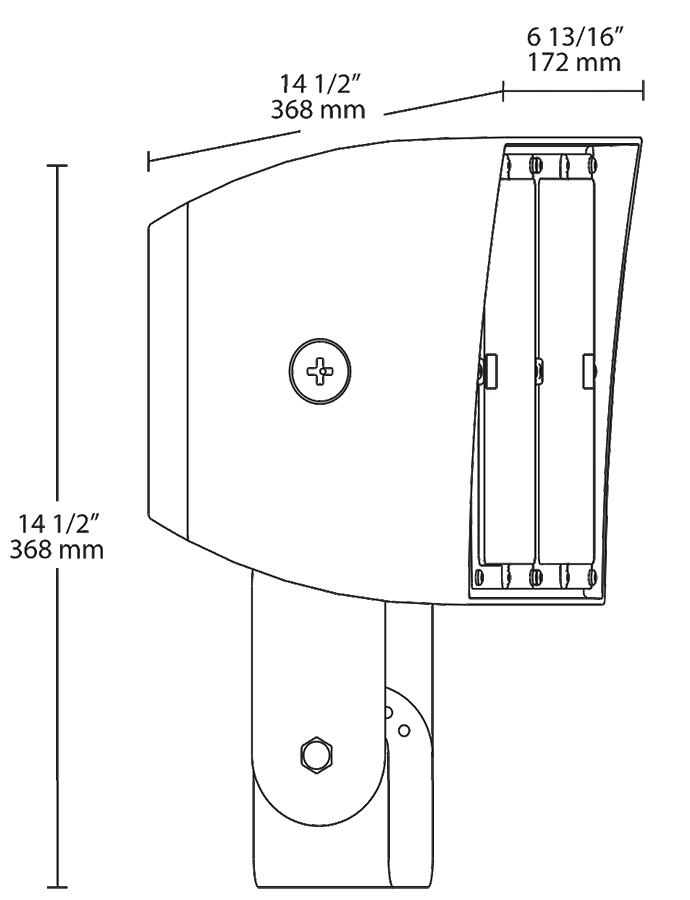

Dimensions
Weight: 20.6 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for ground mounting.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PS2VW64H
DLC Product Code: PS2VW64H
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.60A, 208V: 0.34A, 240V: 0.30A, 277V 0.26A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
3.74% at 120V, 8.54% at 277V
Power Factor
99.8% at 120V, 96.8% at 277V
Surge Protection
4 kV
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
