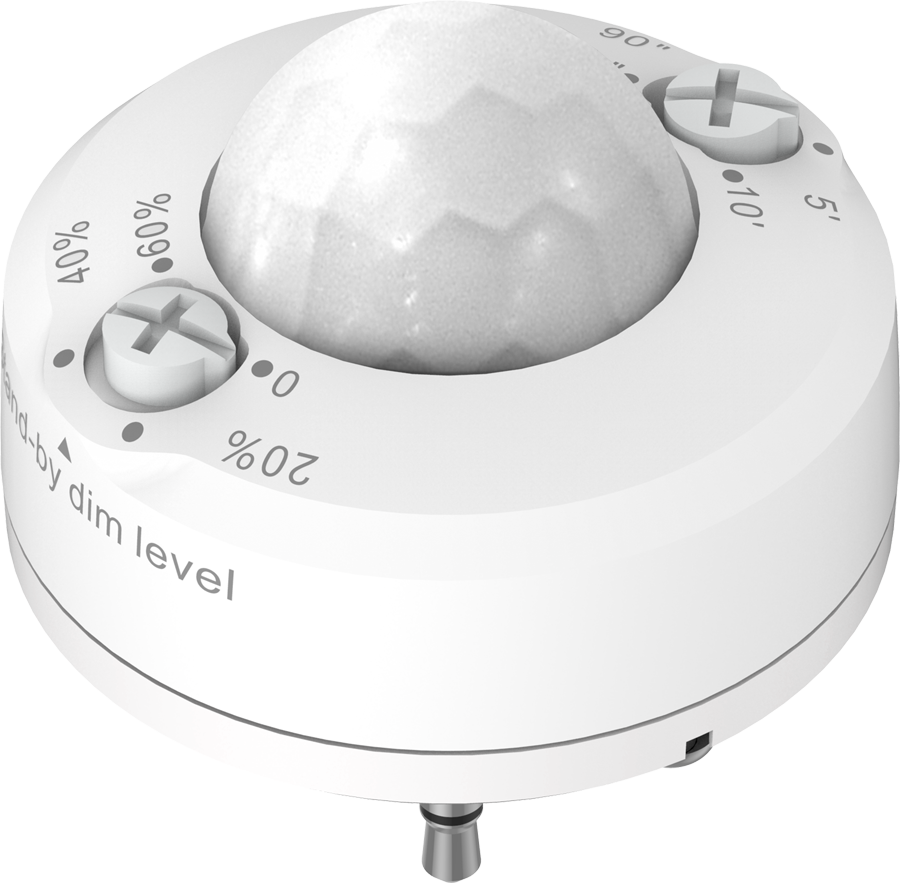

PIR-S
- Motion detection
- On-off functionality
- Slotted detection pattern
- Standby level options: off, 20% dim, 40% dim, or 60% dim
- Hold time options for motion detection: 30 seconds, 90 seconds, 5 minutes, 10 minutes
- Standard 3.5mm AUX port connection
- Do not use with enclosed metal luminaire
- IP20, don't expose directly to water
- Daylight Photocell built in with default threshold of 300 lx

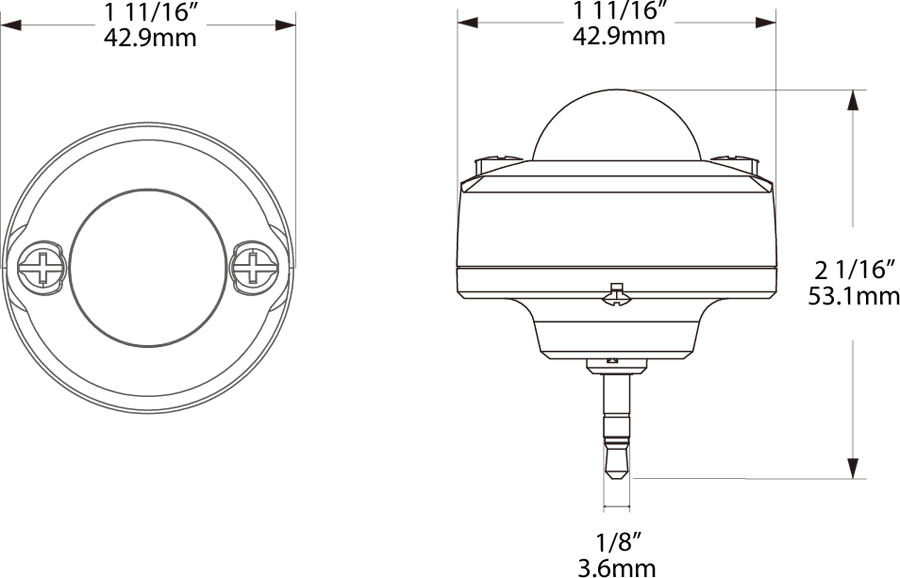

Dimensions
Technical Specifications
Performance
Product Type
PIR Sensor
Electrical
Operating Temperature
-20°C to 60°C
Input Voltage
15VDC
Max Input Current
0.1A
Max Output Current
0.02A
Detection Angle
120 degrees
Max Mounting Height
19.7 ft
Detection Radius
13.12 ft
Standby Dim Levels
0/20%/40%/60%
Input Frequency
5.8 GHz +/- 75MHz
Input Current @ 120V
Max 0.1mA @15V
Output Voltage
10VDC
Operating Frequency
5.8GHz
Operating Current
20mA
Transmit Power
1mW
Construction
For Use Outdoors in Open Fixtures
No
Compliance
UL Listed
Yes
California Energy Commission (CEC) Status
Lawful for Sales in California
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
