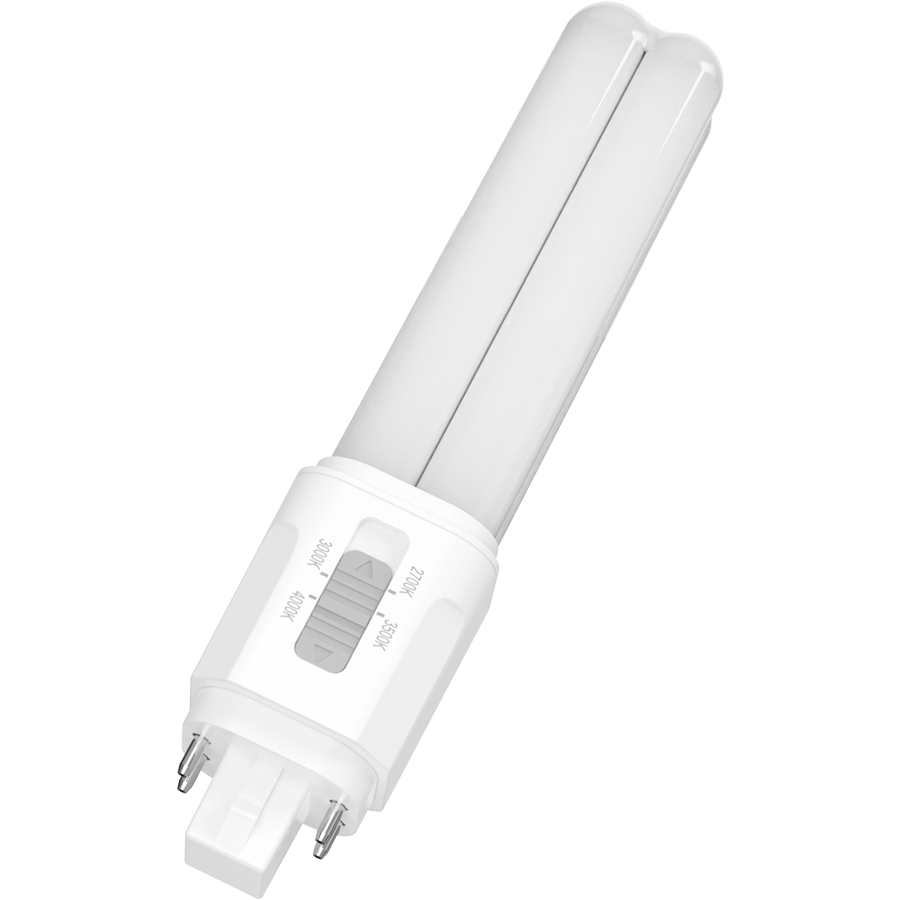

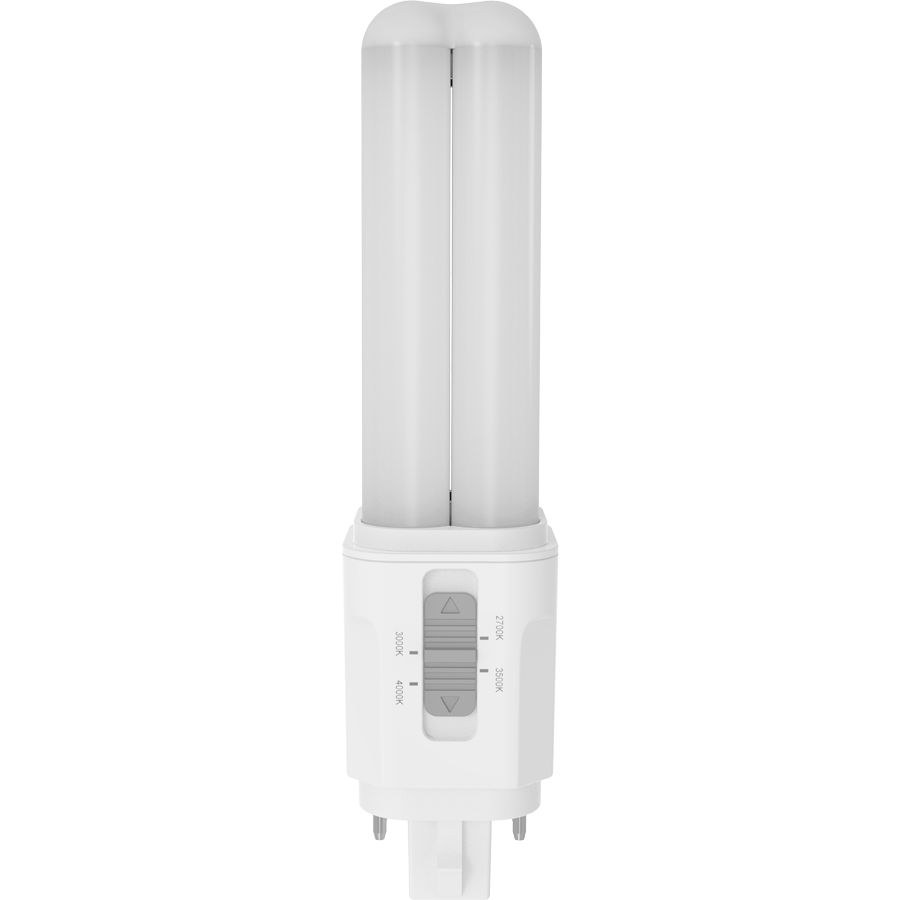

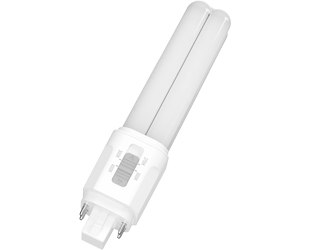

PLC-7-O-8FA-HYB-G24Q
PLC-7-O-8FA-HYB-G24Q
- 4 color temperatures in 1 SKU (2700/3000/3500/4000K)
- Omnidirectional light distribution, suitable for horizontal or vertical installations
- Various base types available: PLC GX23, G24d, G24q, GX32d & PLT GX24d
- 5-Year, No-Compromise Warranty
- PLC Omnidirectional Lamps. 4-Pin & 2-Pin compact fluorescent replacements with CCT-Adjustability
Performance
| Watts | 7W |
| Color Temp | Default: 3000K<br><br> Field adjustable via dip switch 2700/3000/3500/4000K |
| Lumens | 800/800/860/860 lm |
| Efficacy | 114/114/123/123 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan |
| Input Voltage | N/A |
| Power Factor | N/A |
| Flicker | N/A |
| THDi | N/A |

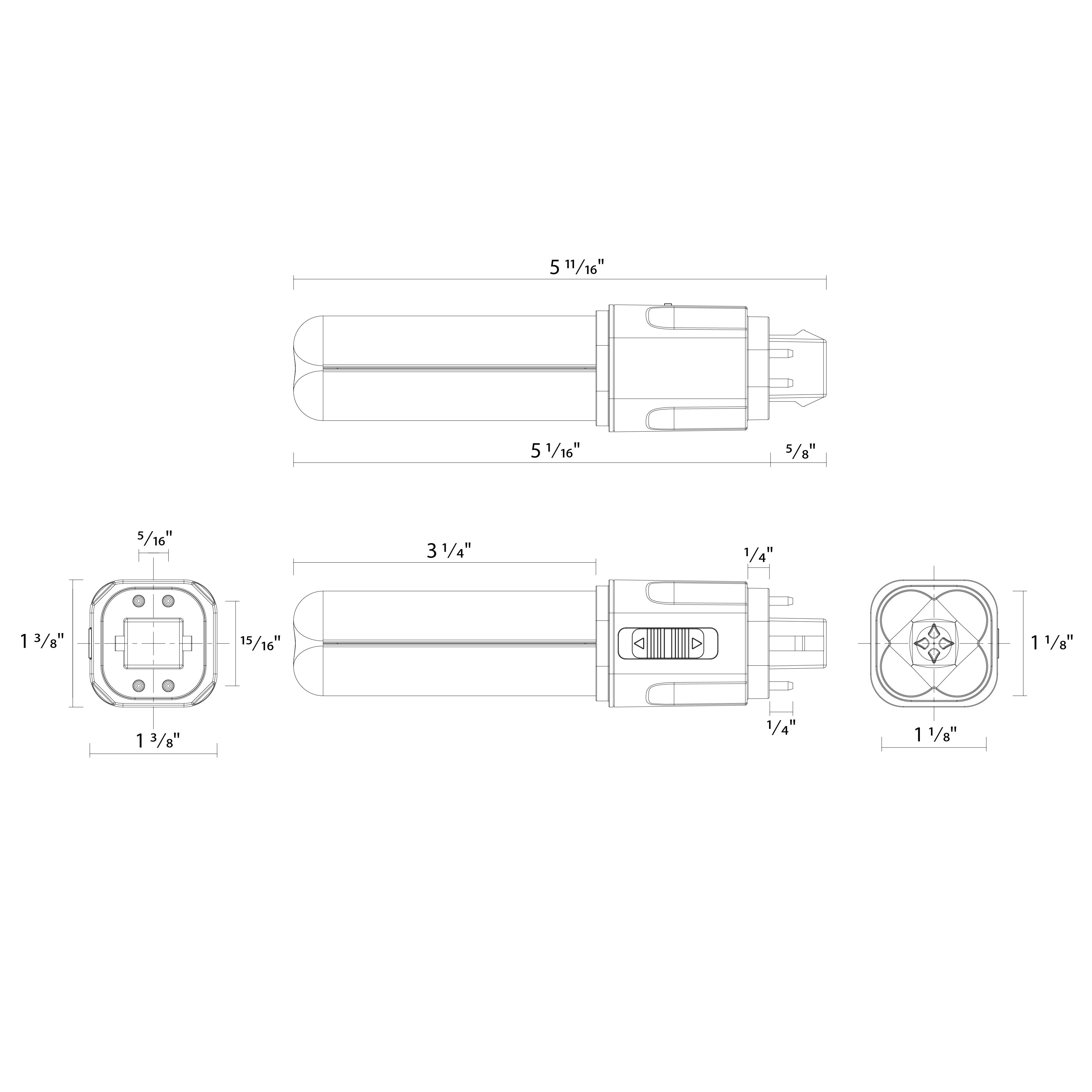

Dimensions
Weight: 0.2 lbs
Technical Specifications
Performance
Product Type
PLC Omnidirectional
Description
Omnidirectional, compact fluorescent replacements for 2-pin and 4-pin applications
Wattage Equivalency
18W CFL
Input Wattage
7W
Lumens (Nominal)
800/800/860/860lm
Efficacy
114/114/123/123lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current 120-277V 50/60 Hz; 120V: 46mA; 208V: 34mA; 240V: 29mA; 277V: 25mA
THD
<20%
Power Factor
0.9
Dimmable
Type A depends on ballast
Type B - Not dimmable
Type B - Not dimmable
Operating Temperature
-4°F to 113°F(-20 to 45°C)
Flicker
Type A, depends on the ballast
Type B, 50%
Type B, 50%
LED Characteristics
Beam Angle
360°
Color Temperature
Default: 3000K
Field adjustable via dip switch 2700/3000/3500/4000K
Field adjustable via dip switch 2700/3000/3500/4000K
Color Accuracy (CRI)
>80 CRI
R9 Value
High color performance with R9 greater than 0
Color Consistency
<7-step (3000/3500K) <5-step (2700K/4000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Base Type
G24Q 4-pin
Construction
Shape
PLC
Finish
White
Enclosure Material
Constructed from frosted, shatter-resistant polycarbonate
Compliance
Listings
UL Listed, UL Recognized
Environment
Suitable for use indoors in dry and damp environments.
Fixture Rating
Suitable for use in enclosed fixtures
Certification Model Number
T20137(PLC-7-O-8FA-HYB-G24Q)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
