PR5-07-30D2
PR5-07-30D2
- Designed for ground mounting
- Heavy duty TGIC polyester coating
- Reinforced hand holes with grounding lug and removable cover for easy wiring access
- Pole caps, base covers & bolts are sold separately
- Custom manufactured for each application

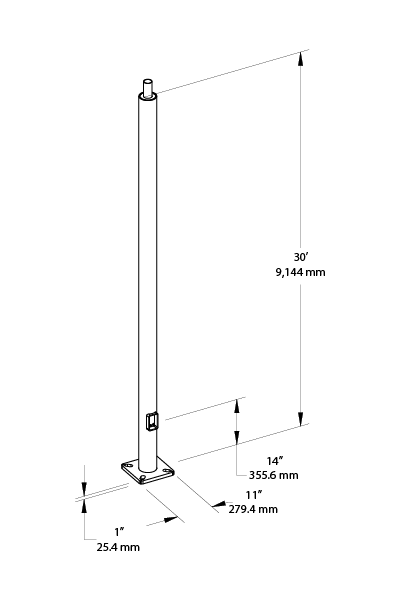

Dimensions
Weight: 334.9 lbs
Technical Specifications
Compliance
CSA Listed
Suitable for wet locations
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Performance
Description
Steel pole 5" round 7 gauge 30 foot drilled two sides square base
Construction
Shaft
46,000 p.s.i. minimum yield.
Hand Holes
Reinforced with grounding lug and removable cover
Base Plates
36,000 p.s.i. minimum yield.
Color
Bronze powder coating
Height
30 ft
Gauge
7
Wall Thickness
3/16"
Shaft Size
5"
Anchor Bolt Templates
WARNING Template must be printed on 12" x 18" sheet for actual size. CHECK SCALE BEFORE USING. Templates shipped with anchor bolts and available online.
Max EPA's/Max Weights
70MPH 11.8 ft/380 lb.
80MPH 7.6 ft/360 lb.
90MPH 4.7 ft/310 lb.
100MPH 2.6 ft/290 lb.
110MPH 1.1 ft/270 lb
80MPH 7.6 ft/360 lb.
90MPH 4.7 ft/310 lb.
100MPH 2.6 ft/290 lb.
110MPH 1.1 ft/270 lb
Other
Terms of Sale
Pole Terms of Sale is available online.
