PTR6-11-20WT
PTR6-11-20WT large main
  • Designed for ground mounting
  • Heavy duty TGIC polyester coating
  • Reinforced hand holes with grounding lug and removable cover for easy wiring access
  • Pole caps, base covers & bolts are sold separately
  • Custom manufactured for each application
 View Technical Specs
View Price & Availability

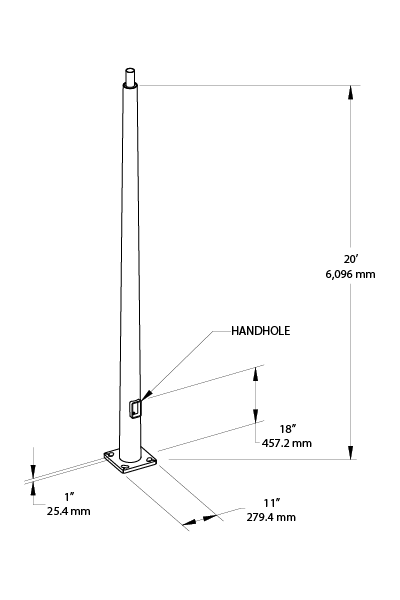

Dimensions
Link to Dimension Drawing

Weight: 152.1 lbs

Technical Specifications
Compliance
CSA Listed
Suitable for wet locations
Performance
Description
Steel pole 6" taper 11 gauge 20 foot welded tenon square base
Construction
Base Shaft Diameter
6"
Hand Holes
Reinforced with grounding lug and removable cover
Base Plates
Slotted base plates 36,000 p.s.i.
Color
Bronze powder coating
Tenon
Welded 2 3/8" tenon included
Height
20 ft
Gauge
11
Wall Thickness
1/8"
Anchor Bolt Templates
WARNING Template must be printed on 12" x 18" sheet for actual size. CHECK SCALE BEFORE USING. Templates shipped with anchor bolts and available online.
Max EPA's/Max Weights
70MPH 17.5 ft/550 lb.
80MPH 12.6 ft/525 lb.
90MPH 8.7 ft/500 lb.
100MPH 6.2 ft/500 lb.
110MPH 4.4 ft/500 lb.
120MPH 3.0 ft/500lb.
130MPH 1.8 ft/220 lb.
140MPH 1.0 ft/400 lb.
150MPH 0.9 ft/390 lb
Accessories
Base/Cap: BASE-RT6
Anchor Bolts: BOLT5-8
Other
Terms of Sale
Pole Terms of Sale is available online.
