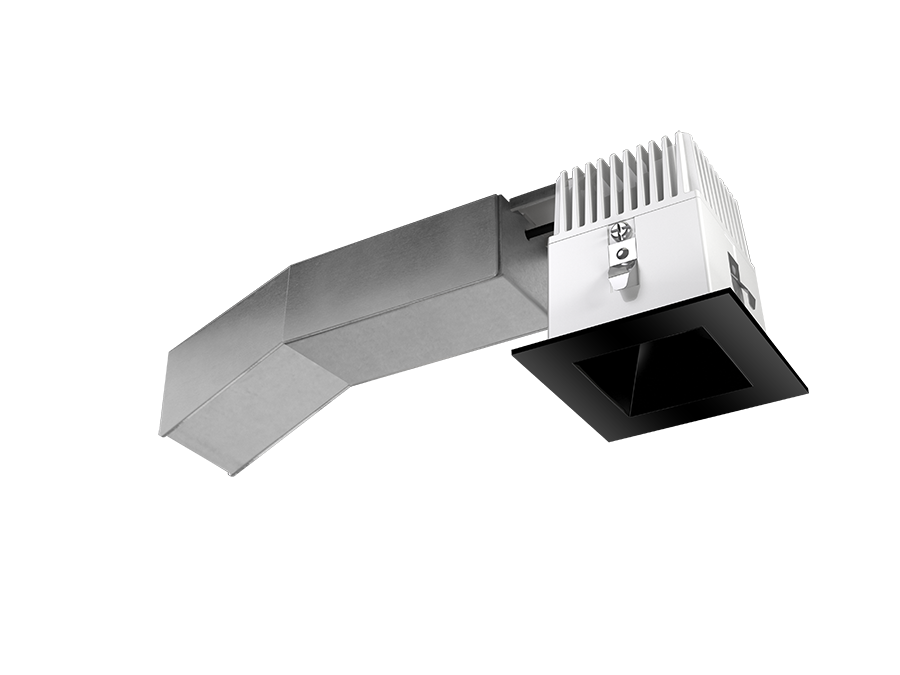

RDDLED2S-10D-30YHC-B-BT
RDDLED2S-10D-30YHC-B-BT
- 10W replaces 75W MR16
- Universal dimming (TRIAC, ELV and 0-10V) for optimal light control
- Deep regress design improves visual cutoff and reduces glare
Performance
| Watts | 10W |
| Color Temp | 3000K (Warm) |
| Lumens | 723 lm |
| Efficacy | 62.3 lm/W |
| Color Accuracy | 91 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.11A |
| 208V | 0.07A |
| 240V | 0.06A |
| 277V | 0.05A |
| Input Watts | 11.6W |
Dimensions
Weight: 2.9 lbs
Technical Specifications
Compliance
UL Listed
Suitable for Wet Locations. Covered Ceiling Mount Only.
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.11A, 208V: 0.07A, 240V: 0.06A, 277V: 0.05A
Dimming Driver
0 - 10V (at 120-277V), TRIAC and ELV (at 120V only).
See dimmer compatibility guide here.
See dimmer compatibility guide here.
THD
16.2% at 120V, 26.2% at 277V
Power Factor
98.4% at 120V, 90.3% at 277V
Surge Protection
4 kV
Optical
Optics
30°
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Construction
Cold Weather Starting
Minimum starting temperature is -35°C (-31°F)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Housing
Specification-grade, die-cast aluminum construction
Reflector
Vacuum-metalized polycarbonate
Trim Ring
Black powder coated die cast 1/2" trim ring
Trim Cone
Black square trim cone
Lens
Optical grade polycarbonate
Green Technology
Mercury and UV free. RoHS-compliant components.
Other
Replacement
Replaces 75W MR16
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Recently Viewed Products
RDDLED2S-10D-30YHC-B-BT
Recessed Downlights 723 Lumens Rddled 2 Inches Square 10W Dimmable 30 Degree 3000K 90Cri Black Trim Cone Black Trim Ring 1/2 Inch Trim
RDLED2AR8-40YHC-TW
Recessed Downlights 570 Lumens Rdled2Ar8 2 Inch Adjustable Round 8W 40 Degree Beam Spread 90Cri 3000K 1/2 Inch Trim White Trim Ring

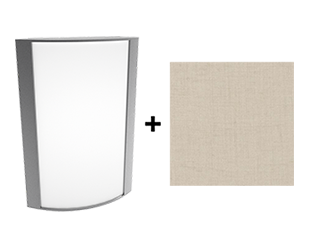

HALV10L935-LS-S/LC/E2
