RWLED2T125SFYRG
RWLED2T125SFYRG large main
  • Ideal for entrance roadways, collector roads, and single-sided roads
  • 27 year lifespan dramatically reduces maintenance and re-lamping costs
  • Precision optics deliver maximum downward street side lumens with uniformity and minimal glare
  • Industry-leading 5G vibration rating per ANSI C136.31
  • Easy-access electrical compartment makes wiring fast and secure
  • 10-Year, No-Compromise Warranty
 View Technical Specs
View Price & Availability
Performance
Watts 125W
Color Temp 3000K (Warm)
Lumens 14,953 lm
Efficacy 114 lm/W
Color Accuracy 71 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 1.12A
208V 0.70A
240V 0.61A
277V 0.52A
Input Watts 131.2W
Dimensions
Link to Dimension Drawing

Weight: 32.0 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations as a downlight
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC Product Code: P0000177Q
IP Rating
Ingress protection rating of IP66 for dust and water
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Optical
IES Classification
The Type II distribution is ideal for entrance roadways, collector roads and other long, single-sided and narrow lighting applications. This type of lighting is commonly found on smaller local streets.
Construction
Effective Projected Area
EPA = 2.2
Electrical
Driver
One Driver, Constant Current, Class 2, 1800mA 100-277V, 50-60Hz, Power Factor 99%
THD
5.1% at 120V, 16.6% at 277V
Power Factor
99.4% at 120V, 92.1% at 277V

Recently Viewed Products

This is a link to the product RWLED2T125SFYRG RWLED2T125SFYRG
Roadway Lights 14953 Lumens Type Ii 125W 3000K 120V-277V Slipfitter Mount Roadway Gray
This is a link to the product GN1LED13NSST11YL GN1LED13NSST11YL
Decorative 647 Lumens Gooseneck 13W 4000K 24 Inches Arm Straight Shade Spot Reflector 11 Inches Yellow

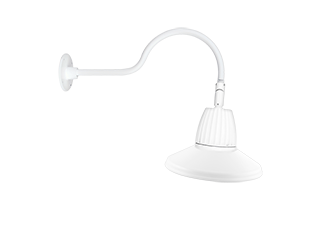

This is a link to the product GN1LED26NSTW GN1LED26NSTW
