RWLED2T150SF/PCS2
RWLED2T150SF/PCS2
- Ideal for entrance roadways, collector roads, and single-sided roads
- 27 year lifespan dramatically reduces maintenance and re-lamping costs
- Precision optics deliver maximum downward street side lumens with uniformity and minimal glare
- Industry-leading 5G vibration rating per ANSI C136.31
- Easy-access electrical compartment makes wiring fast and secure
- 10-Year, No-Compromise Warranty
Performance
| Watts | 150W |
| Color Temp | 5000K (Cool) |
| Lumens | 17,834 lm |
| Efficacy | 116.4 lm/W |
| Color Accuracy | 71 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | 0.80A |
| 240V | 0.69A |
| 277V | 0.60A |
| Input Watts | 153.2W |
Dimensions
Weight: 32.0 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations as a downlight
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
IP Rating
Ingress protection rating of IP66 for dust and water
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Optical
IES Classification
The Type II distribution is ideal for entrance roadways, collector roads and other long, single-sided and narrow lighting applications. This type of lighting is commonly found on smaller local streets.
Construction
Effective Projected Area
EPA = 2.2
Electrical
Driver
One Driver, Constant Current, Class 2, 2100mA 100-277V, 50-60Hz, Power Factor 99%
THD
4.9% at 120V, 14% at 277V
Power Factor
99.5% at 120V, 93.7% at 277V
Recently Viewed Products
VANLED40YFFR/PCS2
Canopy Lights 5353 Lumens Vanled 40W Flat Frosted Lens 277V Swivel Photocell Bronze
NDLED6SD-80YHC-S-W
Recessed Downlights 20 Lumens Ndled6Sd 6 Inch Square Universal Dimming 80 Degree Beam Spread 3000K 90Cri Specular Cone White Trim

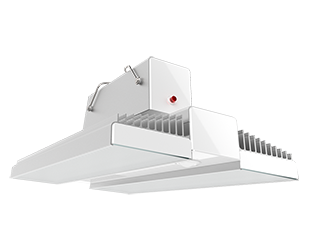

RAIL150N/LCS/E
