RWLED3T105SFRG/480
RWLED3T105SFRG/480
- Ideal for entrance roadways, collector roads, and single-sided roads
- 27 year lifespan dramatically reduces maintenance and re-lamping costs
- Precision optics deliver maximum downward street side lumens with uniformity and minimal glare
- Industry-leading 5G vibration rating per ANSI C136.31
- Easy-access electrical compartment makes wiring fast and secure
- 10-Year, No-Compromise Warranty
Performance
| Watts | 105W |
| Color Temp | 5000K (Cool) |
| Lumens | 12,256 lm |
| Efficacy | 110.7 lm/W |
| Color Accuracy | 70 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 110.7W |
Dimensions
Weight: 31.0 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations as a downlight
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: P946F19G
IP Rating
Ingress protection rating of IP66 for dust and water
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Optical
IES Classification
The Type III distribution is ideal for roadway, general parking and other area lighting applications where a larger pool of lighting is required. It has greater streetside (transverse) throw, allowing the light to project outward and fill the area.
Construction
Vibration Rating
Industry-leading 5G vibration rating per ANSI C136.31
Electrical
Drivers
Two Drivers Constant Current, Class2, 1400mA, 347-480V, 50/60Hz, 0.25A, Power Factor 99%
THD
15.7% at 480V
Power Factor
91.2% at 480V
Recently Viewed Products
RWLED3T105SFRG/480
Roadway Lights 12256 Lumens Type Iii 105W 5000K 480V Slipfitter Mount Roadway Gray
LOT4T110YW/D10/UPA/WS4
Area Lights 13627 Lumens Lotblaster 110W Type Iv 0-10V Dimming 120V-277V Universal Pole Adapter Wattstopper Sensor With 40 Ft Lens White
HALVS10L930-NL-SA
Architectural 233 Lumens Halvs Forward & Up/Down Light 14W 90Cri 3000K Natural Leaves Lens Satin Nickel Finish

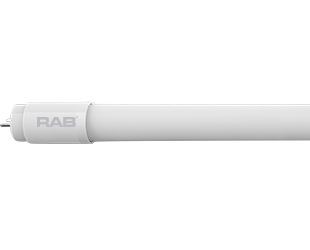

T8-9.5-48G-840-SD-BYP/2
Linear Tubes 1650 Lumens T8 9.5W 4 Feet Glass 80Cri 4000K Single/Double Ended Ballast Bypass

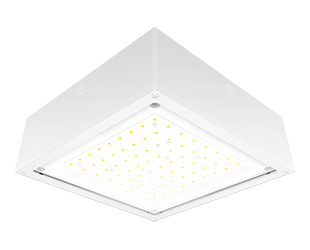

VANLED75YFW/480/LC
