• Ideal for roadway, general parking and major roads
  • 78W High-Performance LED
  • Replaces 250W metal halide roadway fixtures
  • 27 year lifespan dramatically reduces maintenance and re-lamping costs
  • Precision optics deliver maximum downward street side lumens with uniformity and minimal glare
  • Compatible with standard roadway arms
  • Universal adaptors for 1", 1 1/4", 1 1/2" and 2" OD pipe included
  • Industry-leading 5G vibration rating per ANSI C136.31
  • Easy-access electrical compartment makes wiring fast and secure
  • 10-Year, No-Compromise Warranty
View Technical Specs
Performance
Watts 78W
Color Temp 5100K (Cool)
Lumens 9,567 lm
Efficacy 120.8 lm/W
Color Accuracy 71 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V
208V
240V
277V
Input Watts 79.2W
Dimensions
Link to Dimension Drawing

Weight: 32.5 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations as a downlight
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
IP Rating
Ingress protection rating of IP66 for dust and water
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Optical
IES Classification
The Type III distribution is ideal for roadway, general parking and other area lighting applications where a larger pool of lighting is required. It has greater streetside (transverse) throw, allowing the light to project outward and fill the area.
Construction
Vibration Rating
Industry-leading 5G vibration rating per ANSI C136.31
Electrical
Driver
Constant Current, Class 2, 2000mA, 347-480V =0.17A, 50-60Hz, Power Factor 95.8%
THD
11.5% at 480V
Power Factor
95.1% at 480V

Recently Viewed Products

 This is a link to the product RWLED3T78/480 RWLED3T78/480
Roadway Lights 9567 Lumens Type Iii 78W 5000K 480V With Adaptor Bronze
 This is a link to the product BOA4S-40D10-40YN-W BOA4S-40D10-40YN-W
Architectural 2744 Lumens Boa 4 Ft 40W Surface Mount 3500K 0-10V Dimming White
 This is a link to the product GN5LED26NST11G GN5LED26NST11G
Decorative 1319 Lumens Gooseneck 26W 4000K Pole 20 Inches High & 19 Inches From Pole Straight Shade Flood 11 Inches Green
 This is a link to the product ALED4T125SF/LC ALED4T125SF/LC
Arealights 16328 Lumens Aled Type Iv Slipfitter 5K 125W 120V-277V Lightcloud Controller Bronze

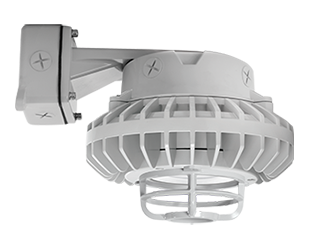

 This is a link to the product HAZBLED80CF-DG/D10 HAZBLED80CF-DG/D10
