RWLED4T150Y
RWLED4T150Y
- Ideal for parking areas and for intersections
- 27 year lifespan dramatically reduces maintenance and re-lamping costs
- Precision optics deliver maximum downward street side lumens with uniformity and minimal glare
- Compatible with standard roadway arms
- Universal adaptors for 1", 1 1/4", 1 1/2" and 2" OD pipe included
- Industry-leading 5G vibration rating per ANSI C136.31
- Easy-access electrical compartment makes wiring fast and secure
- 10-Year, No-Compromise Warranty
Performance
| Watts | 150W |
| Color Temp | 3000K (Warm) |
| Lumens | 17,507 lm |
| Efficacy | 113.5 lm/W |
| Color Accuracy | 70 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 1.31A |
| 208V | 0.80A |
| 240V | 0.69A |
| 277V | 0.60A |
| Input Watts | 154.2W |
Dimensions
Weight: 33.5 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations as a downlight
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
IP Rating
Ingress protection rating of IP66 for dust and water
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Optical
IES Classification
The Type IV distribution (also known as a Forward Throw) is especially suited for illuminating the perimeter of parking areas and for intersections. It produces a semicircular distribution with essentially the same candlepower at lateral angles from 90° to 270°.
Construction
Effective Projected Area
EPA = 0.75
Electrical
Driver
One Driver, Constant Current, Class 2, 2100mA 100-277V, 50-60Hz, Power Factor 99%
THD
4.9% at 120V, 14% at 277V
Power Factor
99.5% at 120V, 93.7% at 277V
Recently Viewed Products
GN3LED26NRBWN
Decorative 1570 Lumens Gooseneck 26W 4000K Up Curve 30 Inches High & 25 Inches From The Wall Rectangular No Shade Brown
A34T5XLWM/480/LCBS/MVS
A34-Xl T5 340/270/220W 3000K/4000K/5000K Wall Mount 480V Lightcloud Blue Mvs Sensor Bronze

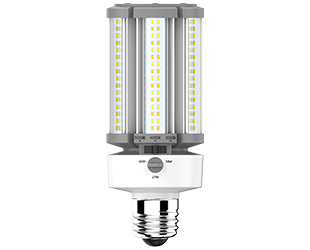

HIDFA-36S-E26-8CCT-BYP/3SP
