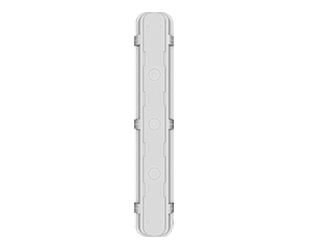

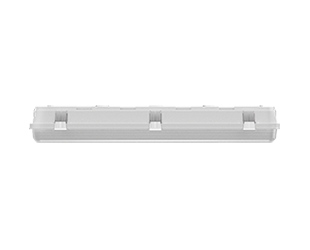

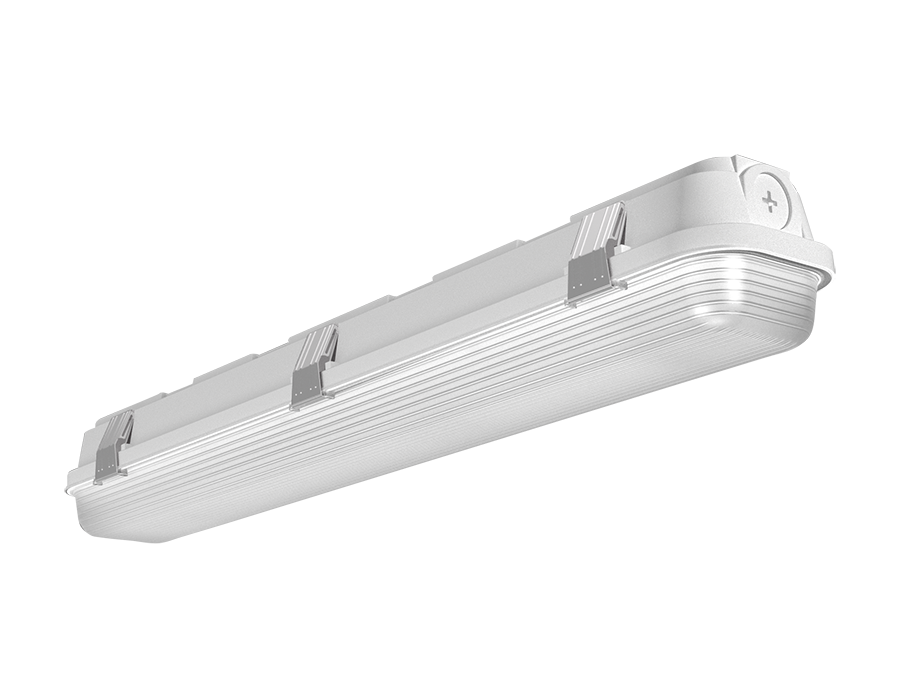

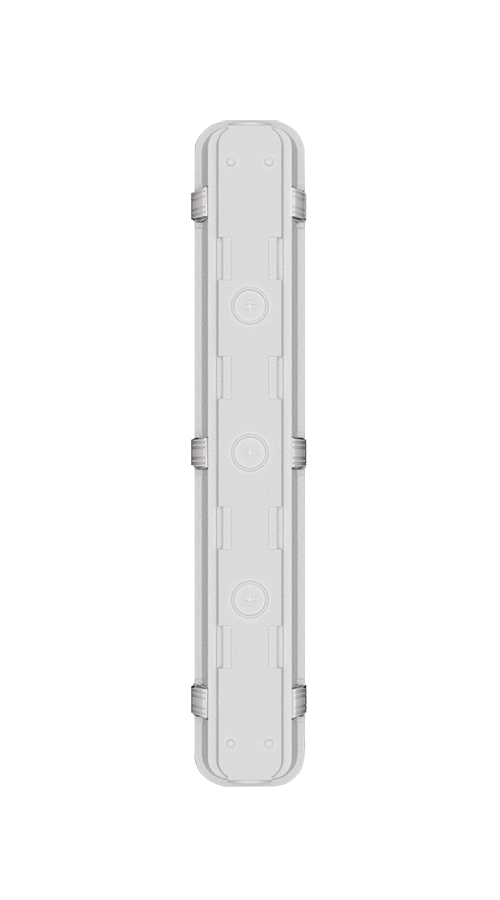

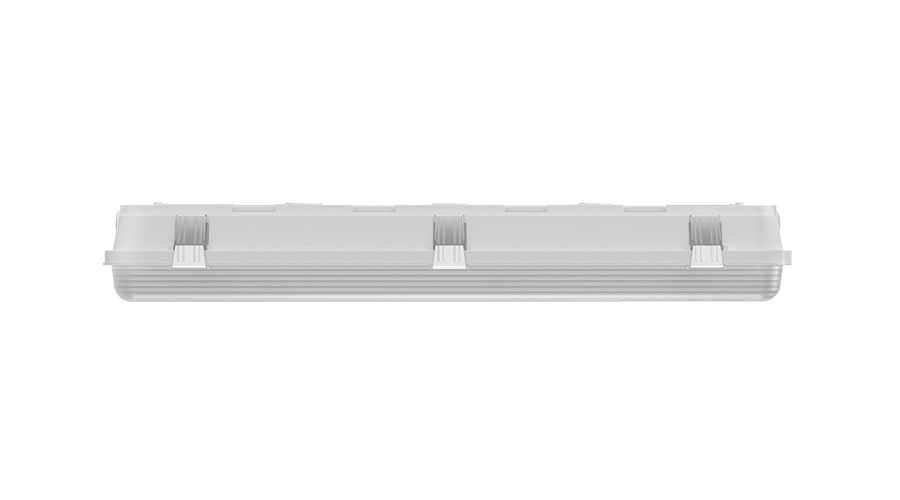

SEAL2
25W 3500/4000/5000K
- 100,000-Hour LED lifespan
- DLC Premium Listed
- 0-10V dimming, standard
- 5-Year, limited warranty
Performance
| Watts | 25W |
| Color Temp | 3500/4000/5000K |
| Lumens | 2040-3400 lm |
| Efficacy | 130-142 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.23A |
| 208V | 0.13A |
| 240V | 0.12A |
| 277V | 0.10A |
| Input Watts | 25/20/15W |
Dimensions
Weight: 4.0 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
UL 94
5VA flame classification
FCC
Complies with Part 15B of the FCC Rules
NSF
NSF Certified by Public Health and Safety
NEMA Rating
NEMA 4X rating indicates an enclosure protects against windblown dust and rain, splashing and hose-directed water, and offers additional corrosion resistance.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP66 for dust and water
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities.
DLC Product Code: S-2WR1TU
DLC Product Code: S-2WR1TU
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.23A, 208V:0.13A, 240V: 0.12A, 277V 0.10A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
3.55% at 120V, 4.59% at 277V
Power Factor
99.9% at 120V, 97.74% at 277V
Surge Protection
2.5 kV
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to (2) F32T8 or (3) F17T8
Construction
IK Rating
IK08 Protected against 5 joules of impact. Equivalent to the impact of a 3.75 lbs. (1.7kg) mass dropped from 11.8" (300mm) above the impacted surface.
Housing
Impact-resistant polycarbonate* with stainless steel door clips. 1/2" NPS opening for conduit and bushing/cord entry. *Polycarbonate is affected by cleaning agents or other liquids containing partial solvents such as low molecular weight aldehydes and ethers, ketones, esters, aromatic hydrocarbons and perchlorinated hydrocarbons. Click here for a detailed list of damaging chemicals.
Lens
Diffuse polycarbonate lens for low glare and maximum protection
Reflector
Cold-rolled steel
Gaskets
High-temperature silicone gaskets
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Ambient Temperature
Max Power Temp Rating: 104°F (40°C )
Middle Power Temp Rating: 48°C (117°F)
Low Power Temp Rating: 51°C (123°F)
Middle Power Temp Rating: 48°C (117°F)
Low Power Temp Rating: 51°C (123°F)
Installation
Tether Cables are provided for easy installation. Quick connector may be used for quick and easy wiring.
Green Technology
Mercury and UV free. RoHS-compliant components.
Finish
Formulated for high durability and long-lasting color
Installation
Mounting
Quick-mount, stainless steel snap on brackets supplied for surface mounting. V-Hook brackets supplied standard for suspending the fixture.
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
