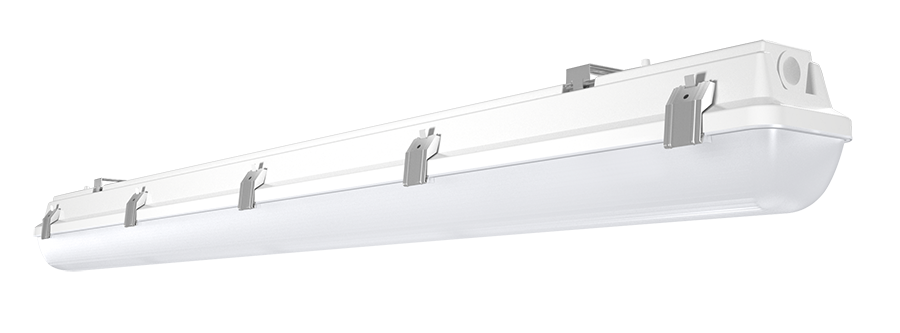

• Economical linear washdown solution
  • Impact resistant polycarbonate housing
  • Diffuse polycarbonate lens for protection and minimal glare
  • Quick mount solutions - surface & suspended
  • 0-10V dimming
View Technical Specs
Performance
Watts 25W
Color Temp 4000K (Neutral)
Lumens 2,865 lm
Efficacy 114.6 lm/W
Color Accuracy 85 CRI
L70 Lifespan 50,000 Hours
Type Constant Current
120V 0.22A
208V 0.13A
240V 0.11A
277V 0.096A
Input Watts 25W
Dimensions
Link to Dimension Drawing

Weight: 6.8 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP65 for dust and water (suitable for damp locations only when installed with Lightcloud Sensor)
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Construction
Housing
Impact-resistant polycarbonate with stainless steel door clips. 1/2" opening/ drill out (drill out by customer) for conduit and bushing/cord entry.Click here for a detailed list of damaging chemicals.
Lens
Diffuse polycarbonate lens for low glare and maximum protection
Gaskets
High-temperature silicone gaskets
Cold Weather Starting
The minimum starting temperature is -4°F (-20°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Installation
Tether Cables are provided for easy installation. Quick connector may be used for quick and easy wiring.
Green Technology
Mercury and UV free. RoHS-compliant components.
Finish
Formulated for high durability and long-lasting color
Installation
Mounting
Quick-mount, stainless steel snap on brackets supplied for surface mounting. V-Hook brackets supplied standard for suspending the fixture.
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.22A, 208V: 0.13A, 240V: 0.11A, 277V: 0.096A
THD
5.16% at 120V, 9.25% at 277V
