SHARK2-25NW/480/D10
SHARK2-25NW/480/D10
- Impact-resistant linear washdown
- Ideal for tunnels and stairwells
- Mounting options: Chain, junction box, angled surface mount or vandal-resistant surface mount
- IP66 Rating protects against dust & water ingress
- 5-Year, No-Compromise Warranty
- 100,000-Hour LED lifespan
Performance
| Watts | 25W |
| Color Temp | 4000K (Neutral) |
| Lumens | 2,978 lm |
| Efficacy | 115 lm/W |
| Color Accuracy | 85 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 25.9W |
Dimensions
Weight: 7.1 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
UL 94
5VA flame classification
NSF
NSF Certified by Public Health and Safety
IP Rating
Ingress protection rating of IP66 for dust and water
NEMA Rating
NEMA 4X rating indicates an enclosure protects against windblown dust and rain, splashing and hose-directed water, and offers additional corrosion resistance.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PIXVV07H (Stairwell and Passageway Luminaires)
DLC Product Code: PVHF40Q9 (Direct Linear Ambient Luminaires)
DLC Product Code: PIXVV07H (Stairwell and Passageway Luminaires)
DLC Product Code: PVHF40Q9 (Direct Linear Ambient Luminaires)
Electrical
Driver
Constant Current, Class 1, 480V, 50/60 Hz, 480V: 0.06A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
10.2% at 480V
Power Factor
99.2% at 480V
Construction
Length
2 ft
Recently Viewed Products
IVAT3-75LWM750WU/WS4
Area Lights 7565 Lumens Ivat3 Type Iii 67W Wall Mount 70Cri 5000K White 120V-277V 0-10V Dimming 40 Feet Lens Wattstopper Sensor

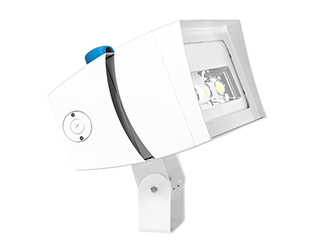

FFLED230TNW/480/D10/PCT4
