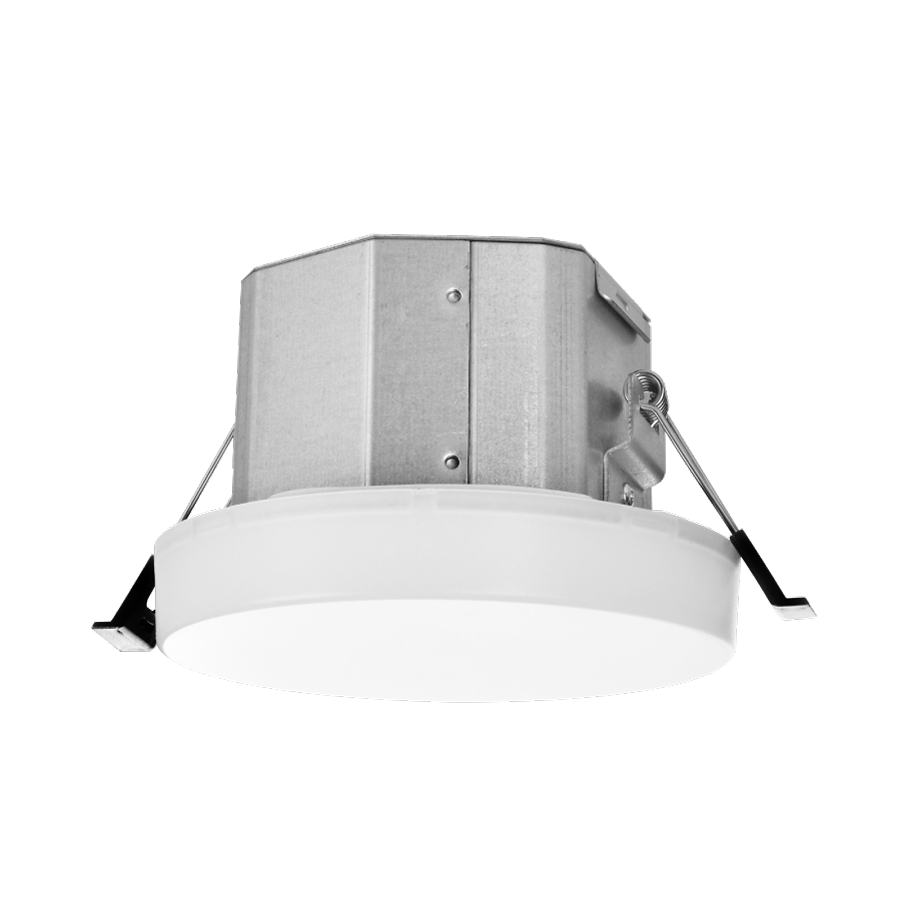

SM3N1-4R-10-9CCT-120-W-BL
SM3N1-4R-10-9CCT-120-W-BL
- 3in1 mounting options: Retrofit, Surface Mount, Recessed
- Edge-lit
- 5 color temperatures in 1 SKU (2700K, 3000K, 3500K, 4000K, 5000K)
- Dimmable down to 10% on triac dimmers, see Dimmer Compatibility List
- Suitable for indoors or outdoor applications in dry, damp, and wet environments
- Anti-UV plastic extends the life of the housing
- IC and airtight rated
Performance
| Watts | 10W |
| Color Temp | Field Adjustable 2700/3000/3500/4000/5000K |
| Lumens | 819-939 lm |
| Efficacy | 82-94 lm/W |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.10A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 10W |
Dimensions
Weight: 1.0 lbs
Technical Specifications
Performance
Description
The SM3N1 is a versilte and flexible option offering 5 field selectable color temperatures with a quality back-lit LED design. With 3 mounting options built into a single fixture choose the mounting option that fits best: Junction Box, Recessed Housing, or Direct Ceiling.
Product Type
Surface & Flush Mounts
Input Wattage
10W
Lumens
5000K: 939lm
4000K: 934lm
3500K: 904lm
3000K: 861lm
2700K: 819lm
4000K: 934lm
3500K: 904lm
3000K: 861lm
2700K: 819lm
Efficacy
5000K: 94lm/W
4000K: 93lm/W
3500K: 90lm/W
3000K: 86lm/W
2700K: 82lm/W
4000K: 93lm/W
3500K: 90lm/W
3000K: 86lm/W
2700K: 82lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Wattage Equivalency
Equivalent to 60W CFL
Compliance
UL Listed
Suitable for wet locations
Fixture Rating
Enclosed
IC Rated
Suitable for direct contact with insulation
Energy Star Approved
ENERGY STAR® Version 2.2 Certified
Energy Star ID
2394831
LED Characteristics
Color Accuracy (CRI)
90 CRI
Beam Angle
130°
R9 Value
High color performance with R9 greater than 50
Electrical
Dimming Driver
TRIAC compatible dimmer with dimming as low as 10%.
THD
<20%
Power Factor
>0.9
Input Voltage
120V
Operating Frequency
60Hz
Construction
Material
Polycarbonate
Shape
Round
Operating Temperature
-4°F(-20°C) to 104°F (40°C )
Size
4"
Installation
Base Type
E26 Edison
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
