SM7S15930UNVW
Performance
| Watts | 15W |
| Color Temp | 3000K (Warm) |
| Lumens | 1,230 lm |
| Efficacy | 60 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.125A |
| 208V | 0.08A |
| 240V | 0.07A |
| 277V | 0.06A |
| Input Watts | 15W |

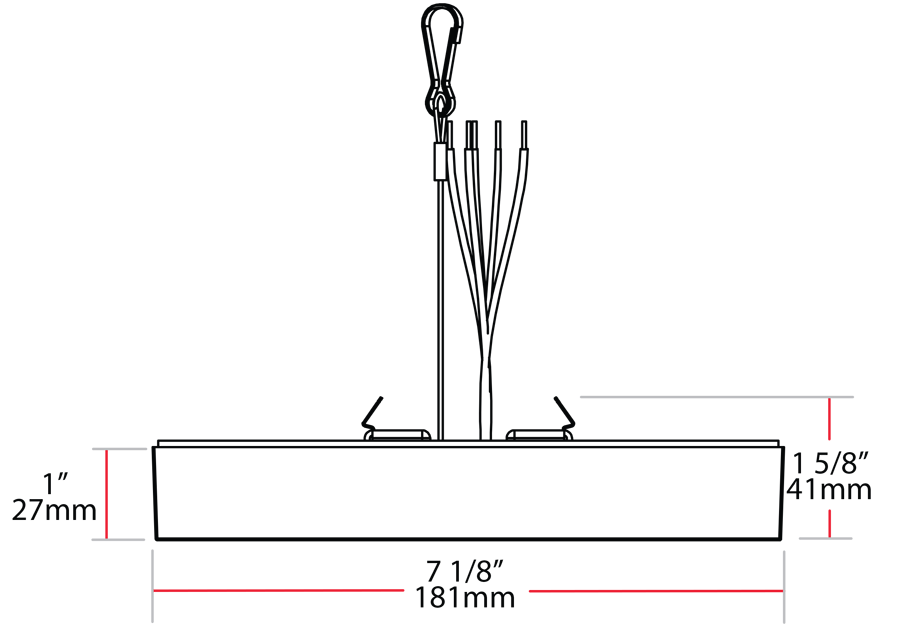

Dimensions
Weight: 1.2 lbs
Technical Specifications
Compliance
UL Listed & UL Classified
Suitable for wet locations
Energy Star Approved
ENERGY STAR® Version 2.2 Certified
Certification Model Number
DLS0041
IC Rated
Suitable for direct contact with insulation
California Title 24
Can be used to conform with the requirements of California Title 24 Part 6.
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Power Factor
≥0.9
Input Voltage
120V through 277V
Flicker
Silent and flicker free operations of less than 30%
Operating Frequency (Hz)
60Hz
Performance
Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
75W Incandescent
Construction
Air Tight
Housing certified Air Tight as per ASTM-E283
Housing
Constructed from durable aluminum that provides thermal cooling. Housing frame built from non-electrically conductive polycarbonate.
Cold Weather Starting
The minimum starting temperature is -22°F (-30°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Lens
Diffuse Polystyrene lens produces smooth uniform light that is glare free
Green Technology
Mercury and UV free. RoHS-compliant components.
Finish
Matte White
LED Characteristics
Beam Angle
120°
LEDs
Long-life, high-efficacy, surface-mount LEDs
R9 Value
High color performance with R9 greater than or equal to 50
Installation
Mounting
Torsion springs allow for secure installation. Retrofit mounting hardware sold separately. SM7UNV/ACCC - 7" 120-277V Surface Mount Retrofit Hardware.
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
