SML4 - RAB Lighting

SML4

Spec Sheet IES File Dimmer Compatibility List LM79 Instructions Spec Sheet EZ Layout

SML4

Select from 5 field-adjustable color temperatures 2700K, 3000K, 3500K, 4000K, or 5000K

Suitable for indoor applications in dry and damp environments

Dimmable, see Dimmer Compatibility List

Meets California Title 24 requirements

50,000 life hours

5-Year, no compromise warranty

View Technical Specs

View Price & Availability

Performance

Watts	45W
Color Temp
Lumens	3,300-3,600 lm
Efficacy	#VALUE! lm/W
Color Accuracy	Field Adjustable 2700/3000/3500/4000/5000K CRI
L70 Lifespan

Type	Constant Current
120V	0.42A
208V	0.27A
240V	0.24A
277V	0.21A
Input Watts	45W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 4.2 lbs

Technical Specifications

Performance

Description

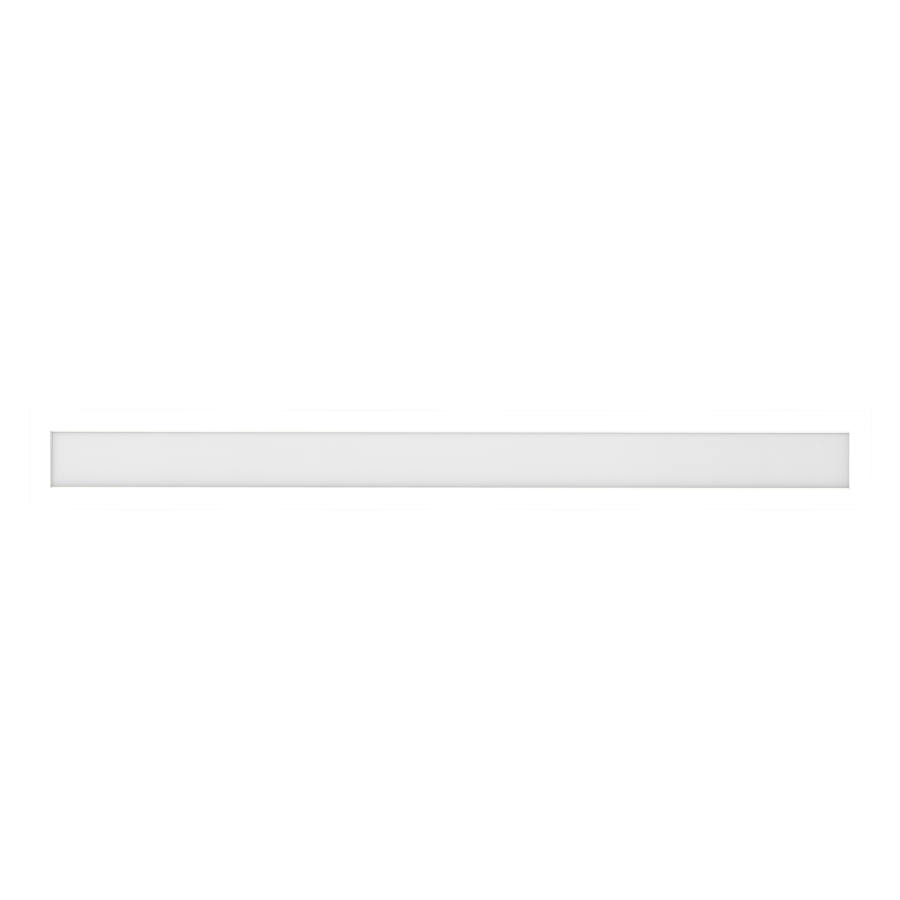

This surface linear downlight offers a sleek, modern look for any application. Offered in various unique form factors, 5 color temperatures to choose from, universal voltage (120-277V) and dimming options available.

Product Type

Surface & Flush Mounts

Input Wattage

45W

Efficacy

5000K: 80lm/W
4000K: 80lm/W
3500K: 78lm/W
3000K: 76lm/W
2700K: 73lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Dimming

Yes, See Dimmer Compatibility List

Wattage Equivalency

Equivalent to 90W CFL

Compliance

UL Listed

Suitable for damp locations

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Electrical

THD

≤30%

Power Factor

≥0.9

Operating Frequency

50/60Hz

Construction

Material

Metal

Trim Style

Smooth Trim

Operating Temperature Range

-4°F - 104°F (-20°C - 40°C)

Installation

Mounting

Surface mount

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
