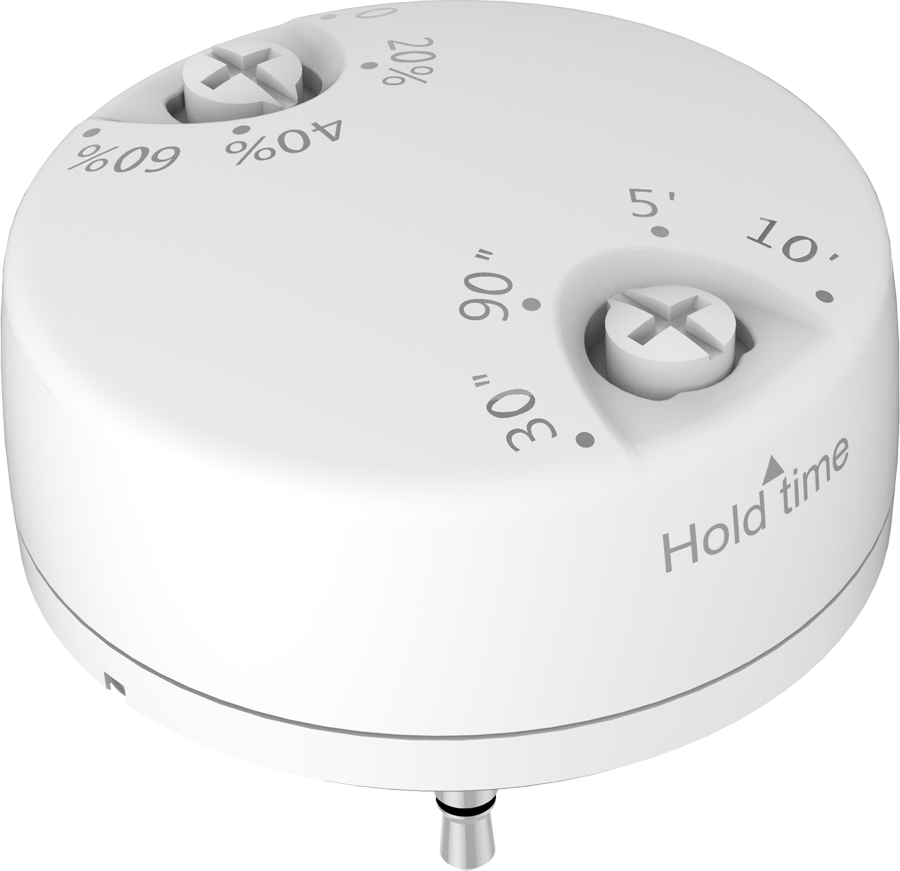

SMW-S
- Motion detection
- On-off functionality
- Slotted detection pattern
- Standby level options: off, 20% dim, 40% dim, or 60% dim
- Hold time options for motion detection: 30 seconds, 90 seconds, 5 minutes, 10 minutes
- Standard 3.5mm AUX port connection
- Do not use with enclosed metal luminaire
- IP20, don't expose directly to water

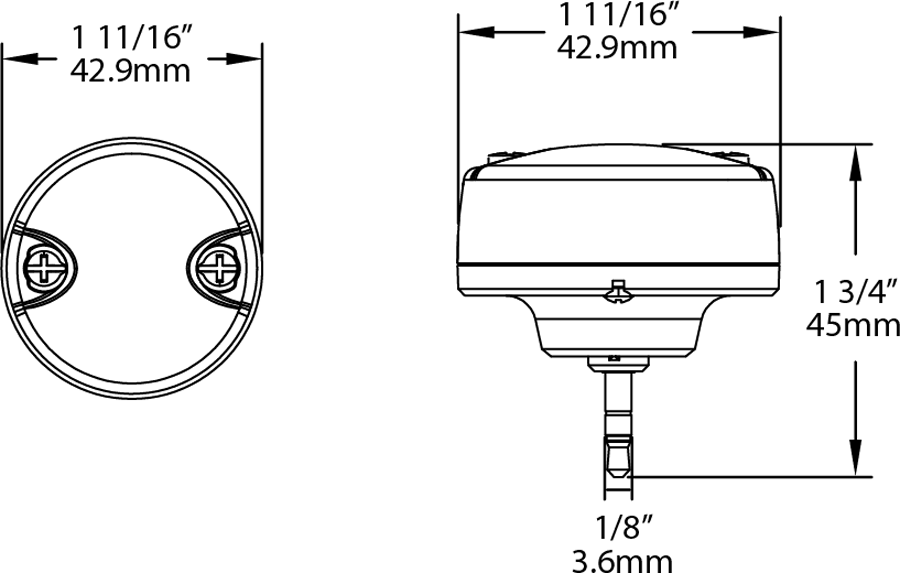

Dimensions
Technical Specifications
Performance
Product Type
MW Sensor
L70 Lifespan
50,000 Hours
Electrical
Input Voltage
15VDC
Max Input Current
0.1A
Max Output Current
0.02A
Detection Angle
120 degrees
Max Mounting Height
33 ft
Detection Radius
9.84 ft
Standby Dim Levels
0/20%/40%/60%
Input Frequency
5.8 GHz +/- 75MHz
Output Voltage
10VDC
Operating Frequency
5.8GHz
Operating Current
20mA
Transmit Power
1mW
Compliance
California Energy Commission (CEC) Status
Lawful for Sales in California
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
