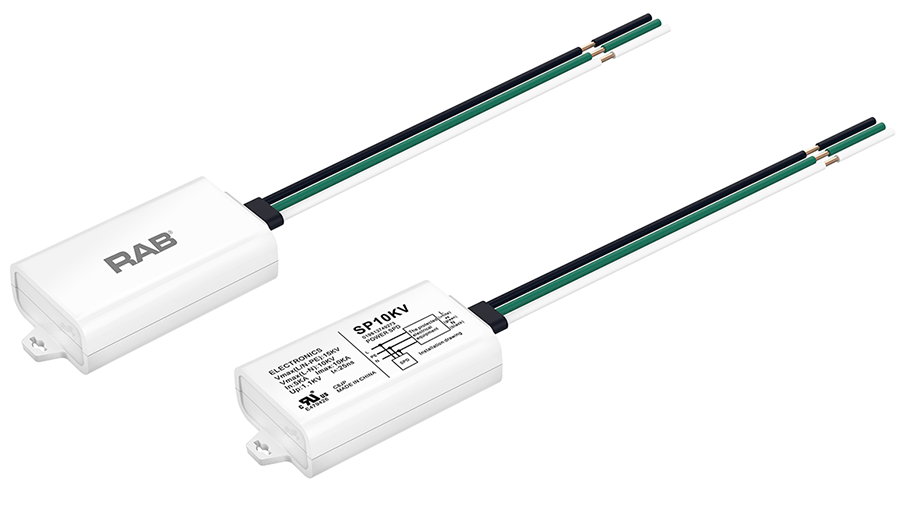

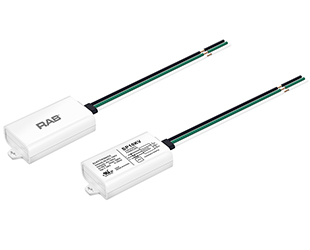

SP10KV
SP10KV
- 3-Lead Surge Protector
- Protects Against Surges According to IEEE C62.41.2
- Surge Location Rated Category C3
- 10KA and 10KV
- IP67 Rated for Wet Locations
- High Temperature/Flameproof Enclosure (194°F/90°C Max. Surface Rating)
- RoHS Compliant
- UL Recognized (UL1449)
- Parallel Wiring
Technical Specifications
Performance
Nominal Operating Voltage
110 - 277V AC
Rated Voltage (max. continuous voltage)
300V
Nominal Discharge Current
5kA
Max Discharge Current
10kA
Nominal Discharge Voltage
10kV
Maximum Discharge Voltage
15kV
Response Time
25ns
Max. Backup Fuse
16A gL/gG
Cross-Section Area
1.5mm2 flexible
Mounting
Custom
Size
97 x 45 x 22mm
Outer Casting Protection Grade
IP65
Electrical
Voltage Protection Level
1.1kV
Operating Temperature Range (Parallel Wiring)
-40°C - 70°C
Operating Temperature Range (Through Wiring)
-40°C - 70°C
Construction
Enclosure Material
Theromoplastic
Compliance
California Energy Commission (CEC) Status
Lawful for Sales in California
