STRP210-840U
STRP210-840U

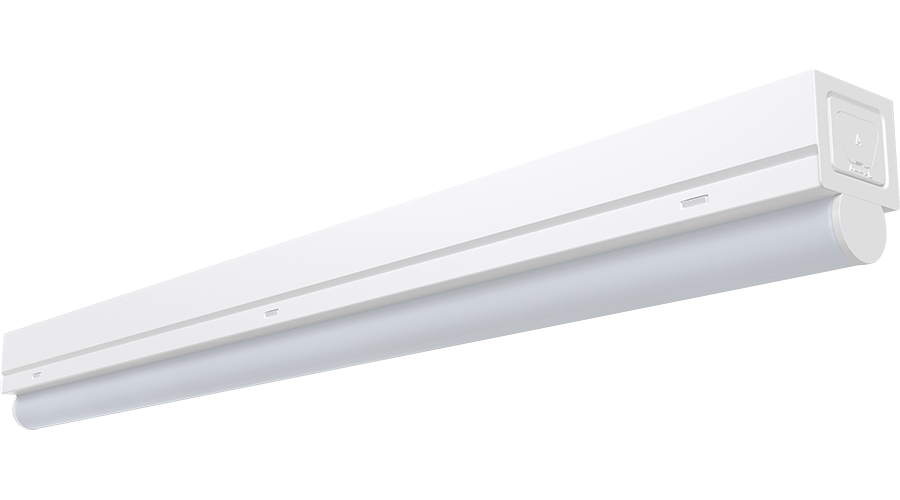

- Traditional, fluorescent tube look; energy-saving LED technology
- Surface-mount ready; accessories available for junction box or suspended mount
- 0-10V dimming
- 50,000-Hour LED lifespan
Performance
| Watts | 10W |
| Color Temp | 4000K (Neutral) |
| Lumens | 1,449 lm |
| Efficacy | 146.4 |
| Color Accuracy | 83 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.09A |
| 208V | 0.05A |
| 240V | 0.05A |
| 277V | 0.04A |
| Input Watts | 9.9W |

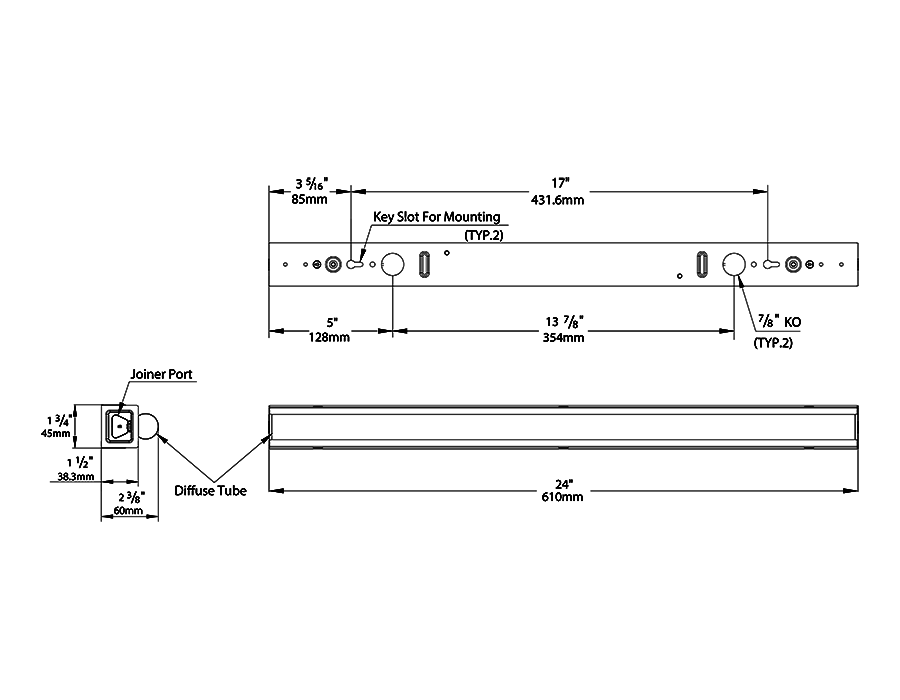

Dimensions
Weight: 2.4 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: P3MQC9BJ
DLC Product Code: P3MQC9BJ
Electrical
Driver
Class 2, Constant Current, 120-277V, 50-60Hz, 120V:0.09A, 208V: 0.05A, 240V: 0.05A, 277V: 0.04A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
6.98% at 120V, 7.42% at 277V
Power Factor
99% at 120V, 91.5% at 277V
Performance
Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Cold Weather Starting
The minimum starting temperature is -4°F (-20°C)
Maximum Ambient Temperature
Suitable for use in up to 122°F (50°C)
Housing
Sheet metal stamping 24 gauge, cold-rolled steel
Connecting Adaptor
May link up to 30 fixtures using connecting adapter included with each fixture for easy installation. Separate connecting plate (order as accessory) recommended for each connection point.
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Comes standard with surface mounting hardware. Accessories available for suspension hook mounting or J-Box mounting (purchased separately).
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Accessories
STRP BPLATE - Bracket plate for mechanically joining fixtures, for runs need one less than fixture quantity. Click here.
STRP SHOOK - Suspension "S" hook and 9 1/2" chain. Sold in pairs, need 1 pair for each fixture. Click here.
JBSTRP - White flat cover for junction-box installations, sold individually. Click here.
STRP SHOOK - Suspension "S" hook and 9 1/2" chain. Sold in pairs, need 1 pair for each fixture. Click here.
JBSTRP - White flat cover for junction-box installations, sold individually. Click here.
