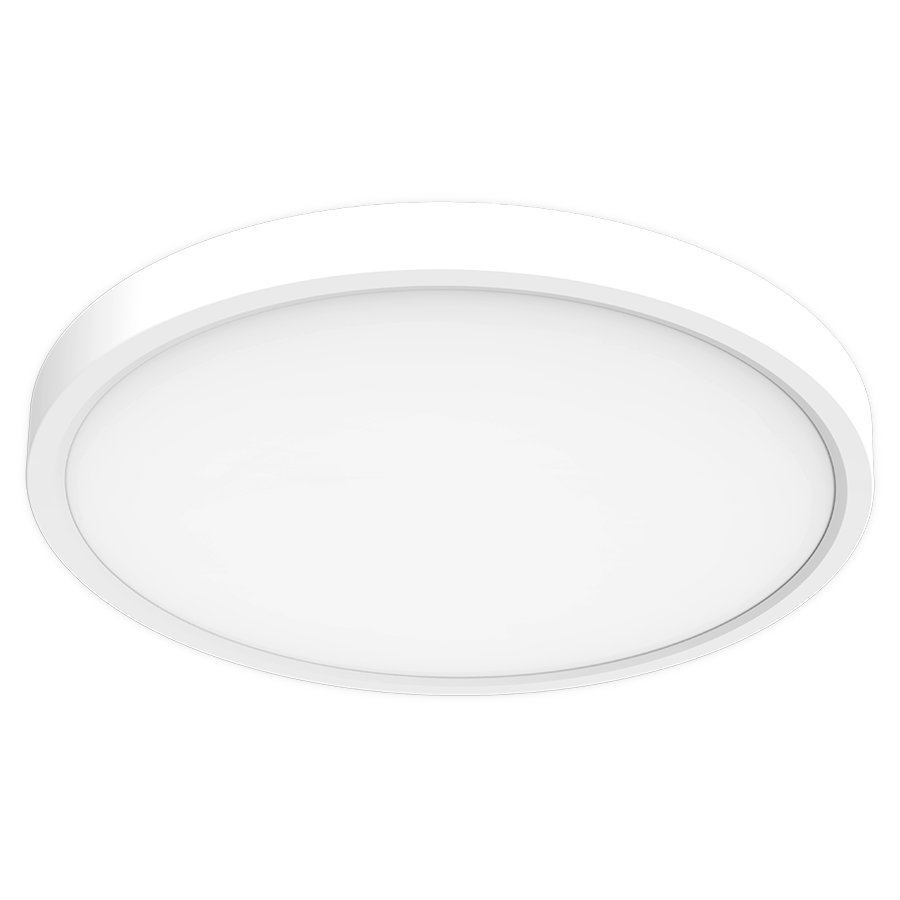

SUMO34-R-12
SUMO34-R-12
- Ultra slim profile
- Field-selectable color temperature 2700/3000/3500/4000/5000K
- Dimmable on TRIAC/ELV, see Dimmer Compatibility List
- Ideal for both commercial and residential applications
- Suitable for indoor/outdoor applications in dry, damp, or wet environments.
Performance
| Watts | 13W |
| Color Temp | |
| Lumens | 903-1,013 lm |
| Efficacy | 70 |
| Color Accuracy | 2700/3000/3500/4000/5000K CRI |
| L70 Lifespan |
| Type | Constant Current |
| 120V | 0.12A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 13W |
Dimensions
Weight: 1.4 lbs
Technical Specifications
Performance
Product Type
Surface Mount
Description
Ultra-economy slim surface mount with 5 field selectable color temperatures. Ideal for commercial or residential applications for retrofit or new construction projects.
Wattage Equivalency
60W Incandescent
Input Wattage
13W
Lumens
903lm @ 2700K; 956lm @ 3000K; 999lm @ 3500K; 1,013lm @ 4000K; 997lm @ 5000K
Efficacy
70lm/W @ 2700K; 75lm/W @ 3000K; 80lm/W @ 3500K; 80lm/W @ 4000K; 77lm/W @ 5000K
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Driver
Constant Current, 60 Hz, 120V, 120V: 0.12A
Electrical
Power Factor
≥0.9
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120V
Operating Frequency
60 Hz
Input Current @ 120V (mA)
127mA
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
Flicker
≤30%
LED Characteristics
Beam Angle
110°±10°
Color Temperature
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Color Accuracy (CRI)
>90 CRI
R9 Value
High color performance with R9 greater than or equal to 50
Color Consistency
4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Installation
Mounting
Surface Mount
Construction
Size
12"
Shape
Round
Finish
White
Enclosure Material
Plastic
Trim Style
Smooth
Lens
Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
Compliance
Listings
UL Listed
Environment
Suitable for use in dry, damp, and wet environments.
IC Rated
No
Air Tight
No
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Certification Model Number
DLS0180(SUMO34-R-12)
T20 Compliant
No
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Other
Accessories
None
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
