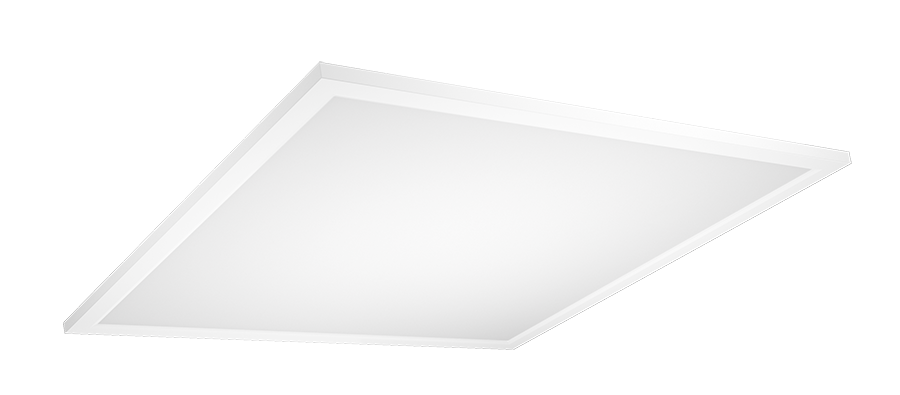

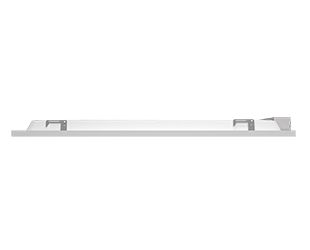

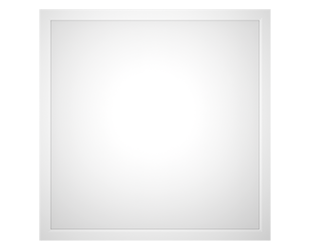

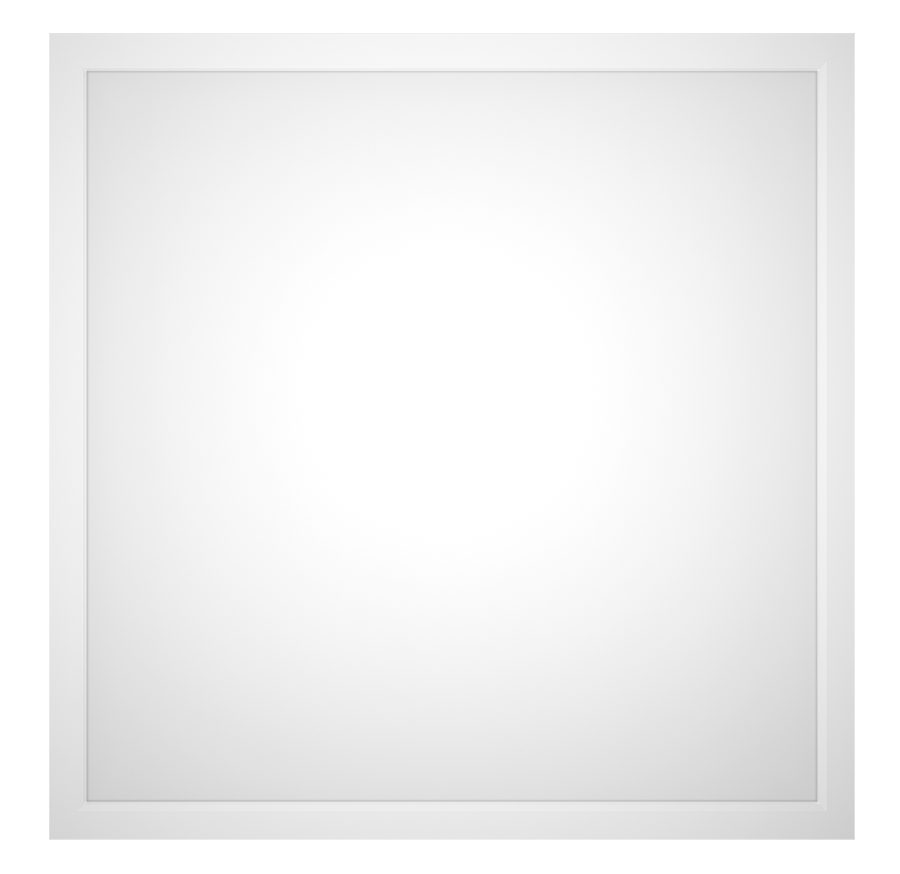

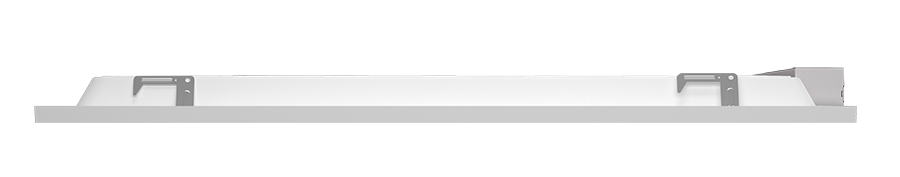

T17FA-2X2/E
40W 3500/4000/5000K
- 0-10V dimming
- 100,000-Hour LED lifespan
- 5-Year, limited warranty
- 2 per case, must order in case quantity increments
Performance
| Watts | 40/30/20W |
| Color Temp | 3500/4000/5000K |
| Lumens | 2757-5038 lm |
| Efficacy | 119.2-144.5 lm/W |
| Color Accuracy | 81-84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.32A/0.25A/0.17A |
| 208V | 0.19A/0.15A/0.11A |
| 240V | 0.16A/0.13A/0.10A |
| 277V | 0.14A/0.11A/0.08A |
| Input Watts | 20.3-38.7W |

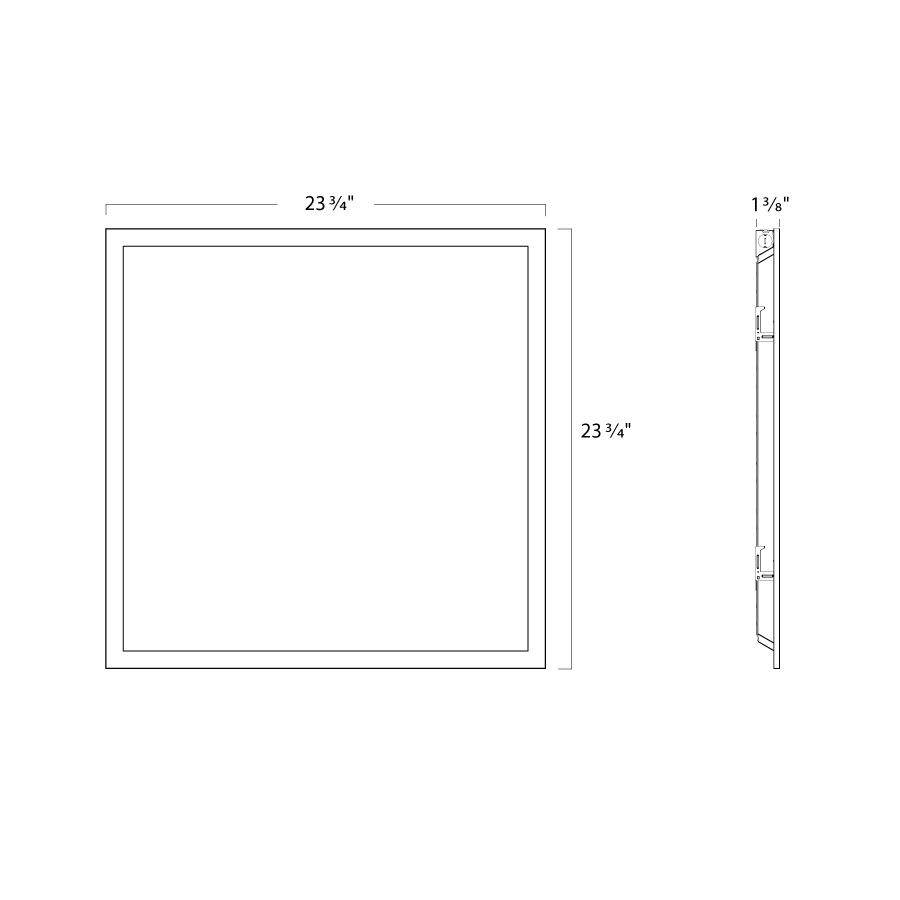

Dimensions
Weight: 6.1 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
40W/30W/20W (factory default 40W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)
40W/30W/20W (factory default 40W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for damp locations
IC Rated
Suitable for direct contact with insulation
CCEA Compliant
Luminaire Requirements used in Environmental Air Space per the electrical code specification of the City of Chicago
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
IP20
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC Product Code: S-ZZ33KP
DLC Product Code: S-ZZ33KP
LED Characteristics
LEDs
Long-life, high-efficacy, discrete, surface-mount LEDs
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Electrical
Driver
Constant Current, Class 2, 120-277V 50/60 Hz:
40W: 120V: 0.37A, 208V: 0.22A, 240V: 0.19A, 277V: 0.17A
30W: 120V: 0.28A, 208V: 0.17A, 240V: 0.15A, 277V: 0.13A
20W: 120V: 0.19A, 208V: 0.12A, 240V: 0.10A, 277V: 0.09A
40W: 120V: 0.37A, 208V: 0.22A, 240V: 0.19A, 277V: 0.17A
30W: 120V: 0.28A, 208V: 0.17A, 240V: 0.15A, 277V: 0.13A
20W: 120V: 0.19A, 208V: 0.12A, 240V: 0.10A, 277V: 0.09A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Battery Backup
Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120-277V.
Battery Backup Light Loss Factor
40W: 0.31
30W: 0.38
20W: 0.50
30W: 0.38
20W: 0.50
Aux Power Supply
No
Dim to Off
No
Surge Protection
Ringwave 2.5KV
Construction
Cold Weather Starting
The minimum starting temperature is -4°F (-20°C)
Lens
Frosted polystyrene
Housing
Aluminum frame & cold rolled steel back housing
Finish
White
Reflector
Powder-coated sheet metal
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Recessed into T-grid ceiling. Surface and recessed mounting kits available for drywall ceilings.
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
