T8-14.5-48GC-850-SE-BYP-PDIM
T8-14.5-48GC-850-SE-BYP-PDIM
- Replacement for conventional fluorescent T8 and T12 linear tubes
- Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- Approximately 50% more energy efficient when compared to Fluorescent T8 lamps
- Works with non-shunted sockets ONLY.
- Separate wiring harness and socket kit accessory available
- 50,000 hour Lifespan
- Rated for use in enclosed and open fixtures in dry or damp locations
- Diffused frosted lens will maintain the same light quality over time
- Instant on full brightness
- Environmentally friendly, no mercury used
- NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)
- Phase cut dimming
Performance
| Watts | 14W |
| Color Temp | 5000K (Daylight) |
| Lumens | 1,900 lm |
| Efficacy | 131 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 120V |
| Power Factor | >0.9 |
| Flicker | N/A |
| THDi | N/A |

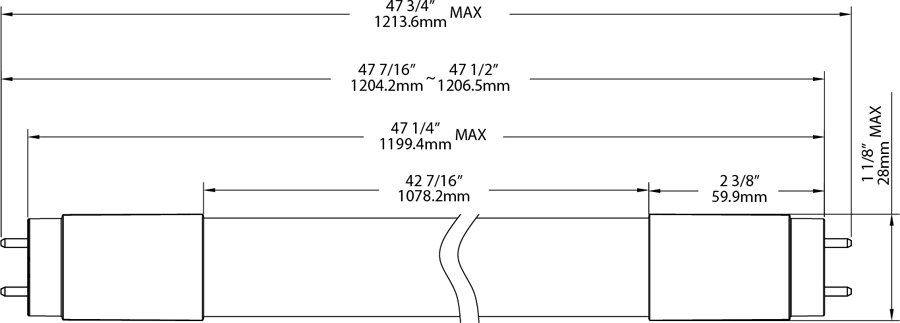

Dimensions
Weight: 0.5 lbs
Technical Specifications
Performance
Product Type
Linear
Input Wattage
14.5W
Lumens
1,900lm
Efficacy
130lm/W
L70 Lifespan
50,000 Hours
Wattage Equivalency
32W Fluorescent
Construction
Material
Coated Glass
Shape
T8
Nominal Length
4 ft
Finish
Frosted
For Use Outdoors in Open Fixtures
No
LED Characteristics
Color Temperature
5000K Daylight
Color Accuracy (CRI)
80 CRI
Beam Angle
210°
Installation
Base Type
G13
Installation Type
Type B, Single Ended wiring
Electrical
THD
<25%
Power Factor
>0.9
Operating Temperature
-20°C to 45°C (-4°F to 113°F)
Dimming
Yes with Phase dimmer. See Dimmer Compatibility List.
Input Voltage
120V
Operating Frequency
60 Hz
Input Current @ 120V
200mA
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Compliance
UL Recognized
Yes
UL Classified
Yes
Certification Model Number
T10089
NSF Listed
Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.
California Energy Commission (CEC) Status
Lawful for Sales in California
Application
Suitable for damp locations and totally enclosed fixtures.
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
