T8-29.5-72P2S-865-DE-BYP

Spec Sheet LM79 Instructions FCC Caution Sell Sheet Family Spec Sheet Spec Sheet

LEDs located on both sides of the tube provides 360-degree light output

Optics designed to deliver smooth even light without hot spots

Multiple lengths available for any application needed

120V-277V - Universal voltage

Ambient temperature: -20°C/-4°F to 55°C/131°F

Rotatable endcaps allow installer to direct light where needed

Robust plastic and aluminum construction to minimize breakage

Mercury and UV free. RoHS-compliant components.

Double-ended bypass installation for simple install and reduced maintenance costs

View Technical Specs

View Price & Availability

Performance

Watts	29W
Color Temp	6500K
Lumens	3,900 lm
Efficacy	132.2 lm/W
Color Accuracy	80 CRI
L70 Lifespan	50,000 Hours

Input Voltage	120-277V
Power Factor	>0.9
Flicker	N/A
THDi	<20%

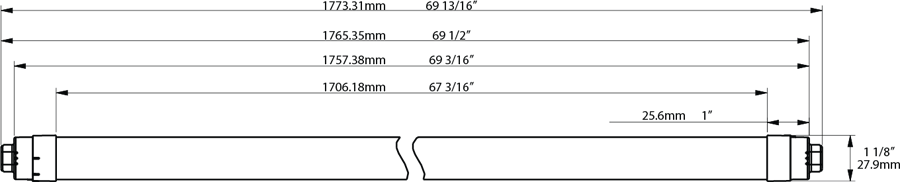

Dimensions

Weight: 1.4 lbs

Technical Specifications

Performance

Product Type

Linear

Input Wattage

29.5W

Lumens

3,900lm

Efficacy

132lm/W

L70 Lifespan

50,000 Hours

Accessories

Cable Kit 4 ft: ST-4L-CABLE-KIT
Cable Kit 6 ft: ST-6L-CABLE-KIT
Surge Protector Compatibility: SP10KV

Construction

Material

Plastic and Aluminum

Shape

Nominal Length

6 ft

Finish

Clear

Installation

Base Type

R17d

Installation Type

Type B, Ballast Bypass

LED Characteristics

Color Temperature

6500K Daylight Deluxe

Color Accuracy (CRI)

80 CRI

Electrical

THD

<20%

Power Factor

>0.9

Operating Frequency

50/60Hz

Dimmable

Input Voltage

120-277V AC

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Compliance

UL Listed

Suitable for damp locations. Suitable for use in enclosed fixtures. Listed in SAM Manual.

California Energy Commission (CEC) Status

Lawful for Sales in California

Application

Suitable for damp locations and totally enclosed fixtures.
