T8-7-24GC-850-SD-BYP
T8-7-24GC-850-SD-BYP
- Replacement for conventional fluorescent T8 and T12 linear tubes
- Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- Single ended and double ended wiring method
- Works with non-shunted sockets and shunted sockets
- Approximately 50% more energy efficient when compared to Fluorescent T8 lamps
- 50,000 hour Lifespan
- Rated for use in enclosed and open fixtures in dry or damp locations
- Diffused frosted lens will maintain the same light quality over time
- Instant on full brightness
- Environmentally friendly, no mercury used
- NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)
- Shatter resistant Coated Glass designed to pass drop tests of 6' on hard surface
- Internal thermal fuse for added safety
- UL Classified, DLC Listed
Performance
| Watts | 7W |
| Color Temp | 5000K (Daylight) |
| Lumens | 950 lm |
| Efficacy | 135.7 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 120-277 |
| Power Factor | >0.9 |
| Flicker | N/A |
| THDi | N/A |

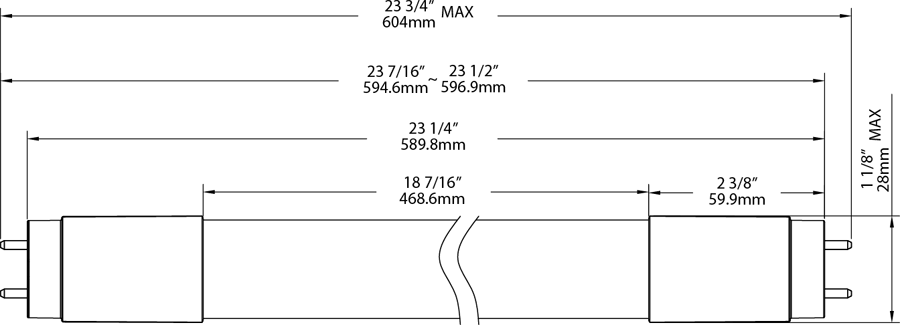

Dimensions
Weight: 0.3 lbs
Technical Specifications
Performance
Product Type
Linear
Input Wattage
7W
Wattage Equivalency
17W Fluorescent
Lumens
950lm
Efficacy
135lm/W
L70 Lifespan
50,000 Hours
Construction
Material
Coated Glass
Shape
T8
Nominal Length
2 ft
Finish
Frosted
For Use Outdoors in Open Fixtures
No
LED Characteristics
Color Temperature
5000K Daylight
Color Accuracy (CRI)
80 CRI
Beam Angle
180°
Installation
Base Type
G13
Installation Type
Type B, Single or Double Ended wiring
Electrical
THD
≤25%
Power Factor
>0.9
Operating Temperature
-20°C to 45°C (-4°F to 113°F)
Dimmable
No
Input Voltage
120-277V AC
Operating Frequency
50/60Hz
Input Current @ 120V
68mA
Input Current @ 277V
29mA
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Compliance
UL Recognized
Yes
UL Classified
Yes
Certification Model Number
T10021
NSF Listed
Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.
California Energy Commission (CEC) Status
Lawful for Sales in California
Application
Suitable for damp locations and totally enclosed fixtures.
