• IP66 Rated
  • Industry-leading 5G vibration rating per ANSI C136.31
  • 100,000-Hour LED lifespan
  • 10-Year, limited warranty
View Technical Specs
Performance
Watts 240W
Color Temp 5000K (Cool)
Lumens 27,379 lm
Efficacy 115.8 lm/W
Color Accuracy 70 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 2.85A
208V 1.17A
240V 0.86A
277V 0.86A
Input Watts 236.5W
Dimensions
Link to Dimension Drawing

Weight: 39.8 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 2.85A, 1.175A, 240V: 1.019A, 277V: 0.86A
THD
6.5% at 120V, 6.6% at 277V
Power Factor
99.6% at 120V, 96.8% at 277V
7-Pin Receptacle
ANSI C136.41 7-pin receptacle
Surge Protection
10 kV

Recently Viewed Products

 This is a link to the product IVAT3-75LPA740ZU/WS2/LC IVAT3-75LPA740ZU/WS2/LC
Area Lights 7485 Lumens Ivat3 Type Iii 67W Universal Pole Mount 70Cri 4000K Bronze 120V-277V 0-10V Dimming 20 Feet Lens Wattstopper Sensor Lightcloud Controller

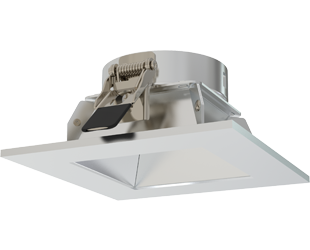

 This is a link to the product ND22T-3SHZ ND22T-3SHZ
