TND-96

Spec Sheet Sell Sheet Folleto (Español) Family Spec Sheet Spec Sheet

TND-96

120-277V Universal input voltage

Performance

Watts
Color Temp
Lumens
Efficacy
Color Accuracy
L70 Lifespan	50,000 Hours

Type
120V
208V
240V
277V
Input Watts

Dimensions

Weight: 1.8 lbs

Technical Specifications

Performance

Product Type

LED Tape Light Driver Wet Rated

Description

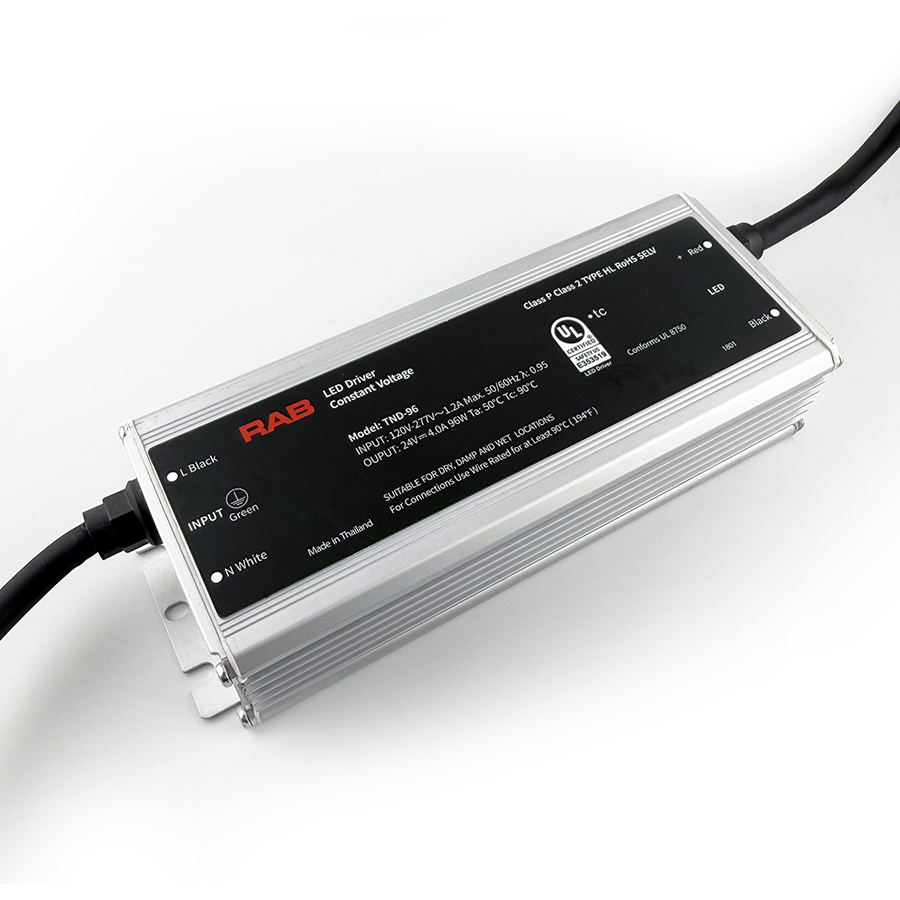

Driver IP67 96W 120-277V for Lightcloud Blue ARCTAPE, FLEXTAPE, NEOFLEX

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Power Factor

0.95

Dimmable

Yes via the Lightcloud Blue mobile app and devices.

This driver will not operate properly when connected to a standard (incandescent) dimmer or dimming control.

Input Voltage

120-277V

Output Power

96W Max

Output Voltage

24VDC

Output Current

Operating Frequency

47-63Hz

Operating Temperature

-4°F to 113°F (-20°C to 45°C)

Construction

Material Construction

Dedicated line voltage and low-voltage wiring compartments. Multiple 7/8" knock-outs for easy wire configuration.

Compliance

Listings

UL8750

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IP Rating

IP67

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Products

Compatible with the following ARCTAPE products: TIC/LCB

Compatible with the following FLEXTAPE products: TOS/LCB, TOS/RGB

Compatible with the following NEOFLEX products: TNF/LCB, TNF/RGB
