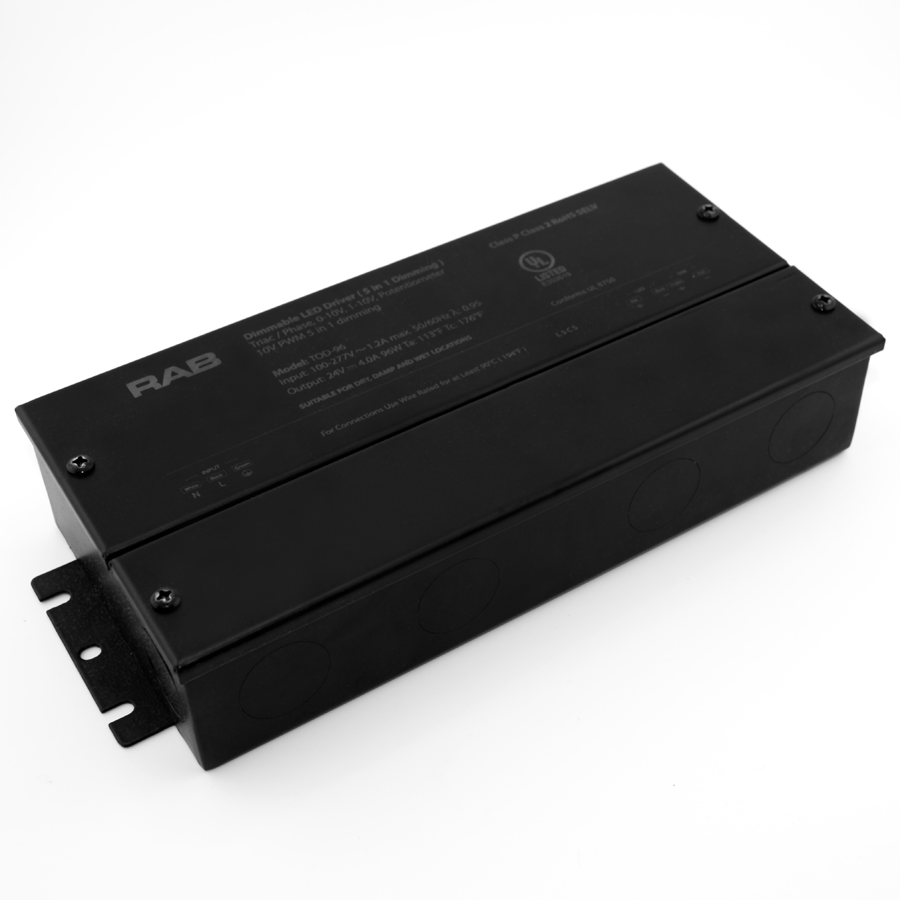

TOD-96
- 120-277V Universal input voltage
- TRIAC, ELV, and 0-10V dimming
- 0.1% Performance dimming, dim-to-dark>Outdoor Rated
- UL Listed and Title 24 JA8 Compliant
- 5-year limited warranty
Performance
| Watts | |
| Color Temp | |
| Lumens | |
| Efficacy | |
| Color Accuracy | |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Voltage |
| 120V | 1.2A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts |

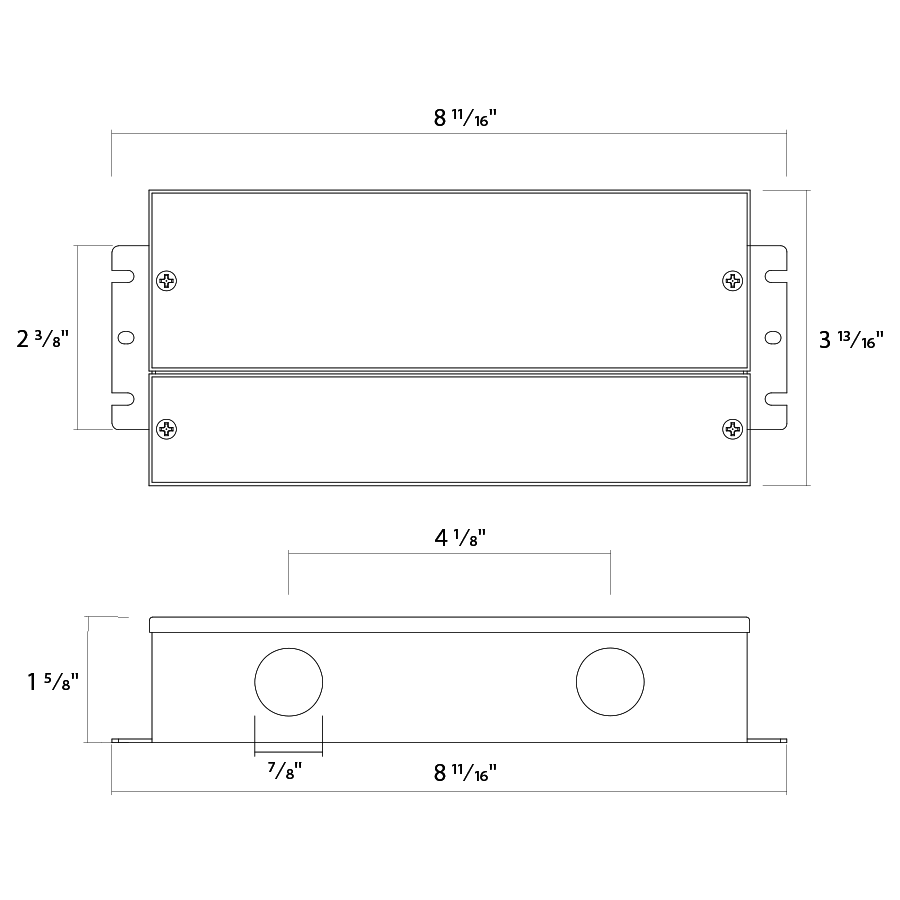

Dimensions
Weight: 2.6 lbs
Technical Specifications
Performance
Product Type
LED Tape Light Driver Wet Rated
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Power Factor
0.95
Dimmable
Can be used with TRIAC, ELV, or 0-10V Dimmers
Input Voltage
100-277V
Output Power
96W Max
Output Voltage
24VDC
Output Current
4A
Operating Frequency
47-63Hz
Operating Temperature
-4°F to 113°F (-20°C to 45°C)
Construction
Material Construction
Dedicated line voltage and low-voltage wiring compartments. Multiple 7/8" knock-outs for easy wire configuration.
Compliance
Listings
UL Listed
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IP Rating
IP65
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Products
Compatible with the following FLEXTAPE products: TOSYY, TOSY, TOSYN, TOSN, TOSCW, TOSLYY, TOSLY, TOSLYN, TOSLN, TOSLCW, TOSHYY, TOSHY, TOSHYN, TOSHN, TOSHCW
Compatible with the following NEOFLEX products: TNFYY, TNFY, TNFYN, TNFN, TNFLGY
Compatible with the following NEOFLEX products: TNFYY, TNFY, TNFYN, TNFN, TNFLGY
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
