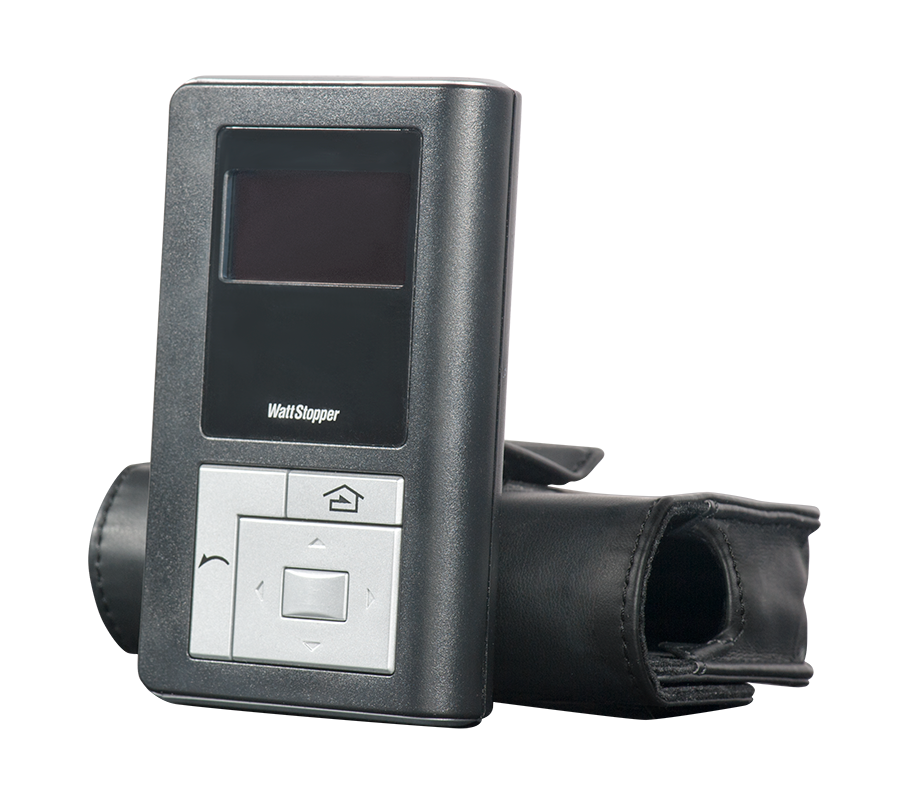

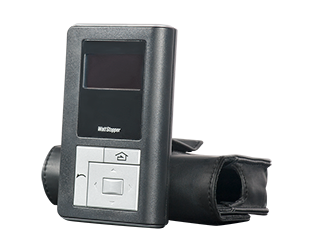

WSREM
WSREM
- High/low modes fully adjustable from 0 to 10V
- Time delay dims light 30 seconds to 30 minutes after detecting motion
- Optional cutoff delay turns fixture off after a preset period of vacancy
- Configure control settings to react to ambient light levels
- Ramp up and fade down times can be customized
- Save up to six profiles for custom control settings
Technical Specifications
Sensor Settings
Power Consumption
1W
0-10V Sinking Current
50mA
Adjustable High and Low Modes
High: 0-10V; Low: off, 0-9.8V
Adjustable Time Delay
Amount of time in high mode with no motion before switching to low mode: 5 min., 1 -30 min.
Adjustable Cut Off Delay
Time in which the fixture will remain on low mode with no motion before turning off and waiting for new motion to turn on: None, 1 -60 min., 1 -5 hrs.
Adjustable Sensitivy
None, low, medium, maximum
Adjustable Setpoint
None, 1 to 250 fc, auto
Operating Temperature
-40°F to 167°F (-40°C to +75°C)
Operating Humidity
20% to 90% noncondensing
Relay Life Rating
200,000 cycles (120/277VAC), 50,000 cycles (230VAC)
IP Rating
Ingress protection rating of IP66 for dust and water
UL Listed
Suitable for Wet Locations as factory installed
Other
