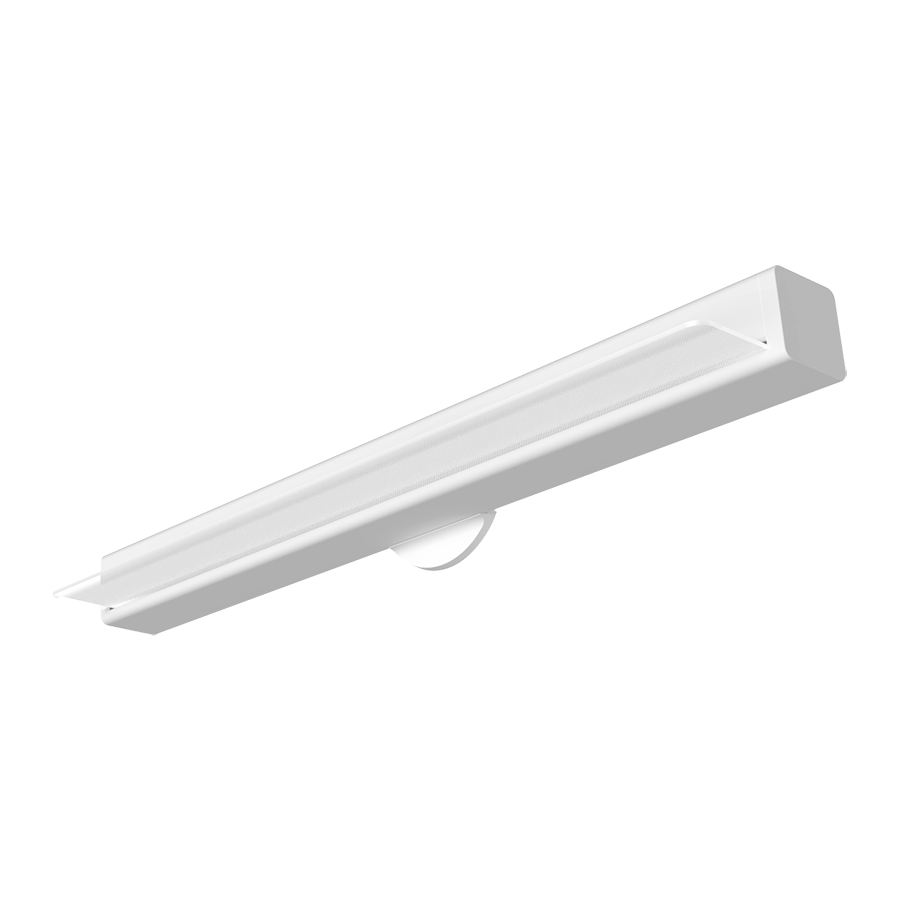

TOMO-2WM
TOMO-2WM
12W 3000/3500/4000/5000K
- 0-10V dimming
- 100,000-Hour LED lifespan
- 5-Year, No-Compromise Warranty
Performance
| Watts | 12/9/6W |
| Color Temp | 3000/3500/4000/5000K |
| Lumens | 764-1,609 lm |
| Efficacy | 114-133 lm/W |
| Color Accuracy | 82-84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.10A/0.08A/0.06A |
| 208V | 0.07A/0.07A/0.05A |
| 240V | 0.06A/0.05A/0.04A |
| 277V | 0.05A/0/04A/0.03A |
| Input Watts | 6.6-12.1W |
Dimensions
Weight: 4.8 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
12W/9W/6W (factory default 9W)
Color temperature selectable by 5000K, 4000K, 3500K and 3000K (factory default: 4000K)
12W/9W/6W (factory default 9W)
Color temperature selectable by 5000K, 4000K, 3500K and 3000K (factory default: 4000K)
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Electrical
Driver
12W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.10A, 208V: 0.07A, 240V: 0.07A, 277V: 0.05A
9W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.08A, 208V: 0.07A, 240V: 0.05A, 277V: 0.04A
6W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.06A, 208V: 0.05A, 240V: 0.04A, 277V: 0.03A
9W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.08A, 208V: 0.07A, 240V: 0.05A, 277V: 0.04A
6W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.06A, 208V: 0.05A, 240V: 0.04A, 277V: 0.03A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 5%.
THD
8.25% at 120V, 13.6% at 277V
Power Factor
97.5% at 120V, 86.9% at 277V
Surge Protection
1-2 kV
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Color Consistency
4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Cold Weather Starting
The minimum starting temperature is -4°F (-20°C)
Maximum Ambient Temperature
Suitable for use in up to 131°F (55°C)
Housing
Cold Rolled Carbon Steel Sheets and Strip (SPCC)
Lens
Diffused Polymethyl Methacrylate (PMMA)
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Wall mount
Other
Lighting Pattern
70% downlight, 30% uplight
Accessories
Fixture to fixture connector: TOMO CONNECT
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
