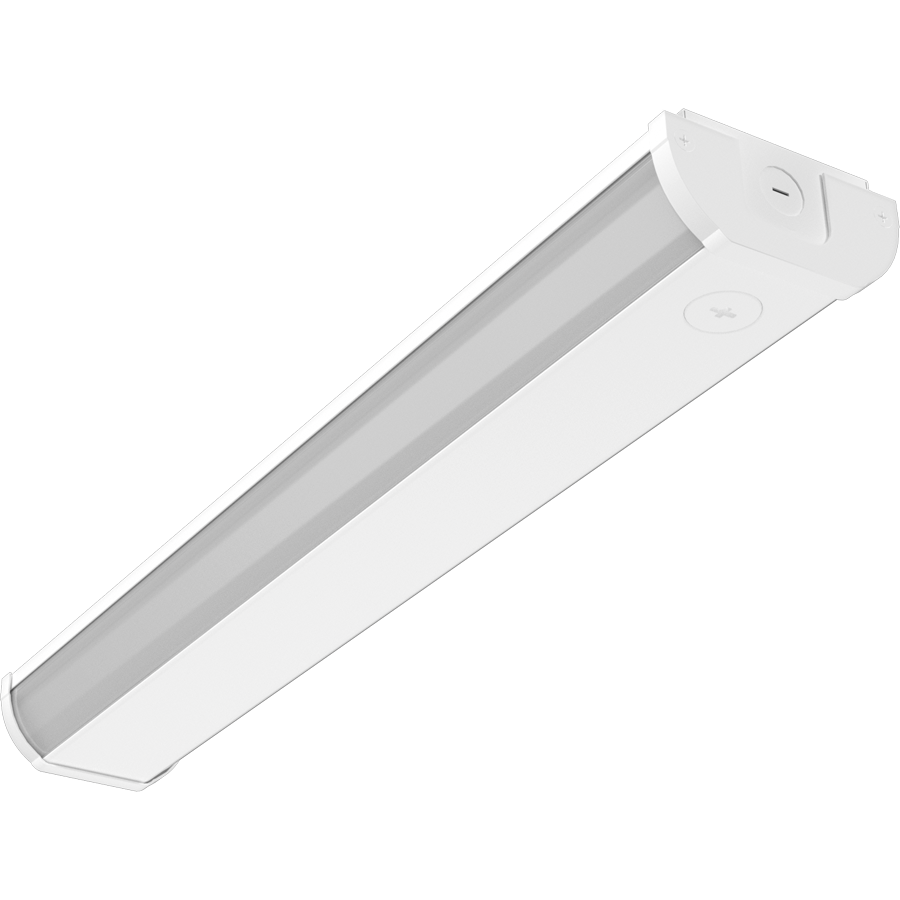

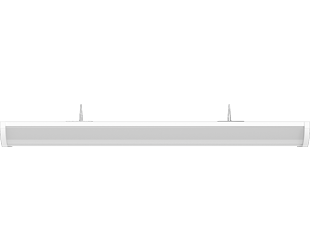

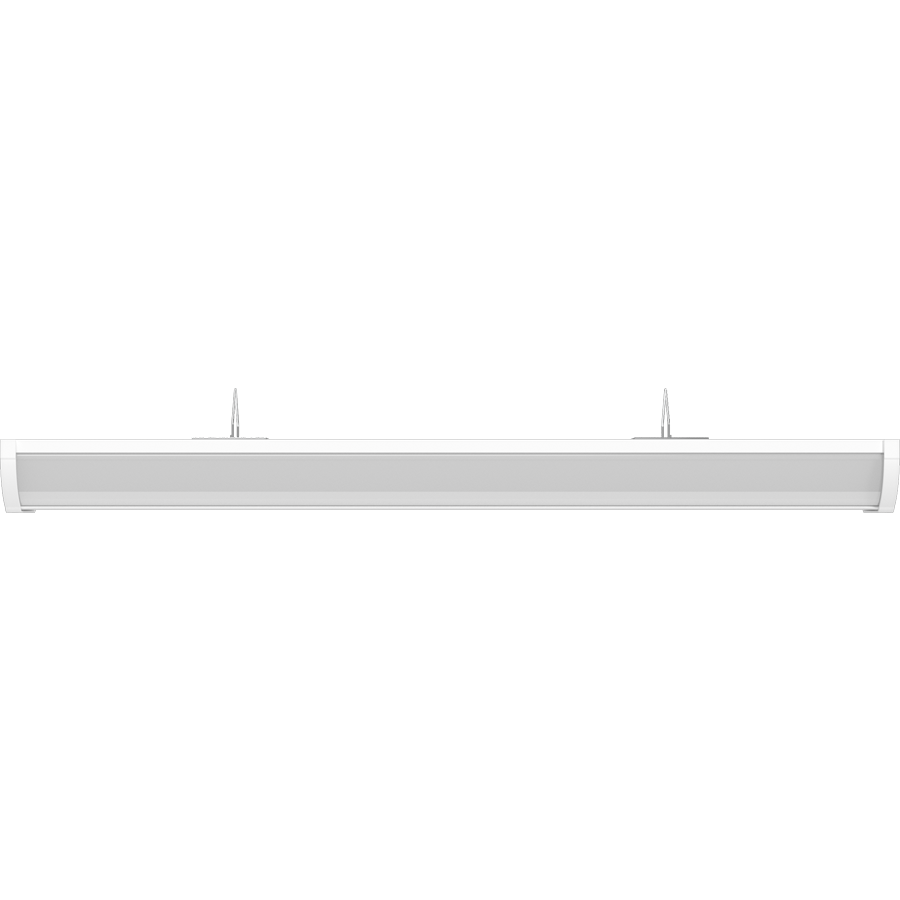

TSLED2
TSLED2
25W 3500/4000/5000K
- 100,000-hour LED Life
- DLC Premium Listed
- 0-10V dimming standard
- 5-Year, no-compromise warranty
Performance
| Watts | 25/20/15W |
| Color Temp | 3500/4000/5000K |
| Lumens | 2,120-3,500 lm |
| Efficacy | 130.5-146.4 lm/W |
| Color Accuracy | 83-84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.21A/0.17A/0.13A |
| 208V | 0.12A/0.10A/0.07A |
| 240V | 0.10A/0.08A/0.06A |
| 277V | 0.09A/0.07A/0.05A |
| Input Watts | 15.4-24.7W |

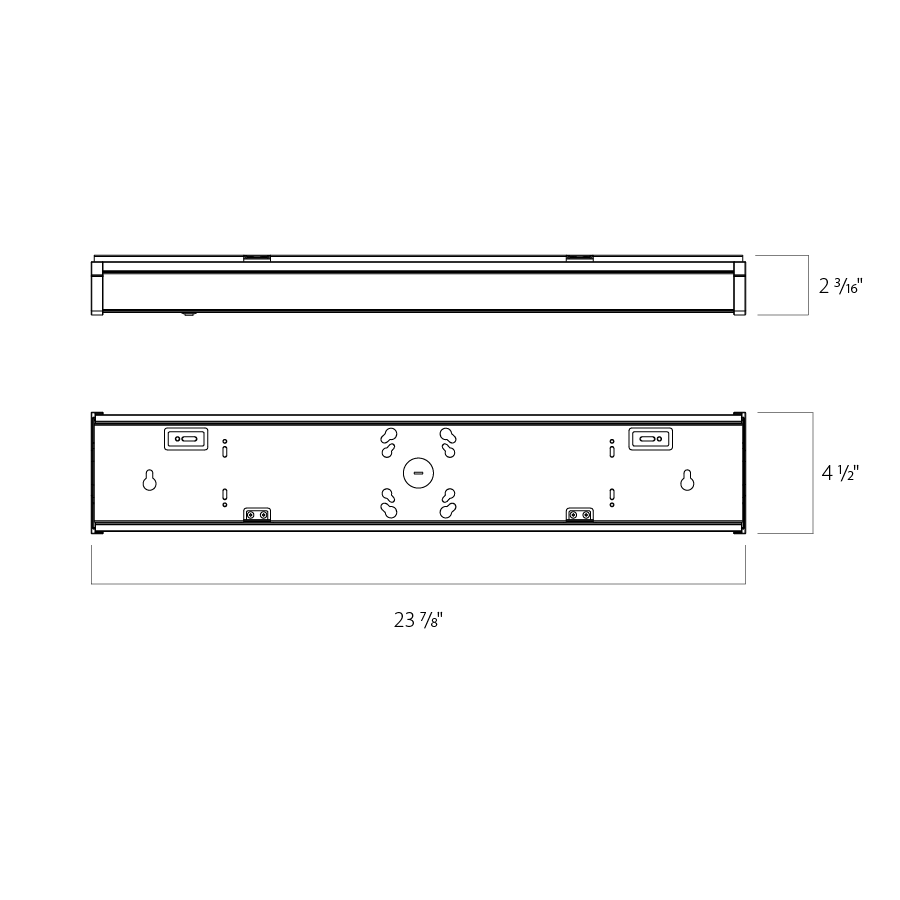

Dimensions
Weight: 3.6 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
25W/20W/15W (factory default: 25W)
Color Temperature Selectable:
3500K, 4000K and 5000K (factory default:4000K)
25W/20W/15W (factory default: 25W)
Color Temperature Selectable:
3500K, 4000K and 5000K (factory default:4000K)
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Electrical
Driver
Constant Current, Class II, 120-277V, 50/60 Hz:
25W: 120V: 0.21A, 208V: 0.12A, 240V: 0.10A, 277V: 0.09A
20W: 120V: 0.17A, 208V: 0.10A, 240V: 0.08A, 277V: 0.07A
15W: 120V: 0.13A, 208V: 0.07A, 240V: 0.06A, 277V: 0.05A
25W: 120V: 0.21A, 208V: 0.12A, 240V: 0.10A, 277V: 0.09A
20W: 120V: 0.17A, 208V: 0.10A, 240V: 0.08A, 277V: 0.07A
15W: 120V: 0.13A, 208V: 0.07A, 240V: 0.06A, 277V: 0.05A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
2.43% at 120V, 2.79% at 277V
Power Factor
99.77% at 120V, 96.29% at 277V
Surge Protection
Ringwave LN4 kV/LN-GND 4 kV
Aux Power Supply
Yes
Dim to Off
Yes
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Construction
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Housing
Aluminium extrusion
Lens
Polycarbonate lens
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Surface mount, ceiling or wall. Knockouts on sides and back.
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Recently Viewed Products
IVAT5S-75LSF750GU/WS4
Area Lights 8434 Lumens Ivat5S Type V Square 67W Slipfitter Mount 70Cri 5000K Roadway Gray 120V-277V 0-10V Dimming 40 Feet Lens Wattstopper Sensor
NDLED4SD-80NHC-S-B
Recessed Downlights 12 Lumens Ndled4Sd 4 Inch Square Universal Dimming 80 Degree Beam Spread 4000K 90Cri Specular Cone Black Trim
GN1LED13YSTLB
Decorative 606 Lumens Gooseneck 13W 3000K 24 Inches Arm Straight Shade Flood 15 Inches Light Blue

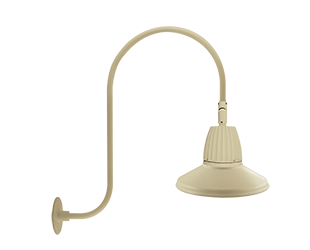

GN3LED26YSSTI
