WFRLA6R129FA120WS

Spec Sheet IES File Dimmer Compatibility List LM79 Instructions Cut Out Template Family Spec Sheet Spec Sheet EZ Layout

WFRLA6R129FA120WS

Shallow baffle trim provides extremely thin depth for shallow ceiling installation

Flexible 360° rotation and 25° tilt for any direction illumination

5 color temperatures in 1 SKU (2700K, 3000K, 3500K, 4000K, 5000K)

No recessed housing or J-box required

IC and airtight rated

View Technical Specs

View Price & Availability

Performance

Watts	12W
Color Temp
Lumens	1,100 lm
Efficacy	91.7
Color Accuracy	Field Adjustable 2700/3000/3500/4000/5000K CRI
L70 Lifespan

Type	Constant Current
120V
208V
240V
277V
Input Watts	12W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 1.2 lbs

Technical Specifications

Performance

Description

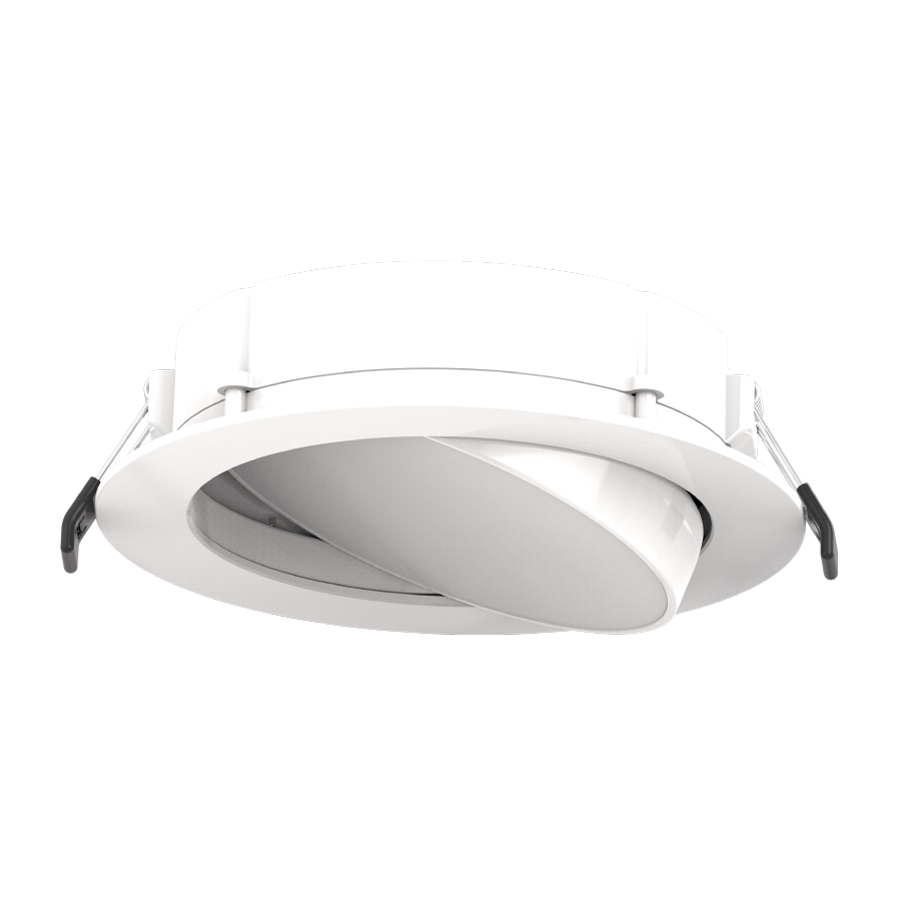

This 6-inch adjustable gimbal wafer downlight has an ultra low-profile design and 5 field adjustable color temperatures making them a flexible solution for both new construction and retrofit applications. The remote driver box has quick connectors, knockouts, and plenty of space for daisy chain wiring or adding an emergency backup unit.

Product Type

Recessed Downlights

Input Wattage

12W

Lumens

5000K: 1,055lm
4000K: 1,075lm
3500K: 1,060lm
3000K: 1,025lm
2700K: 950lm

Efficacy

5000K: 88lm/W
4000K: 90lm/W
3500K: 88lm/W
3000K: 85lm/W
2700K: 79lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Dimming

Yes, See Dimmer Compatibility List

Wattage Equivalency

Equivalent to 75W Incandescent

Compliance

UL Listed

Suitable for wet locations

Energy Star Approved

ENERGY STAR® Version 2.2 Certified

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Energy Star ID

3555644

Electrical

THD

≤20%

Power Factor

0.9

Operating Frequency

60 Hz

Construction

Material

Plastic

Trim Style

Smooth Trim

Shape

Round

Operating Temperature Range

-4°F - 104°F (-20°C - 40°C)

Installation

Mounting

Recessed ceiling

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Compatible Accessories

DRI-EMB-15S-LV
2-n-1 Driver + Battery Backup
