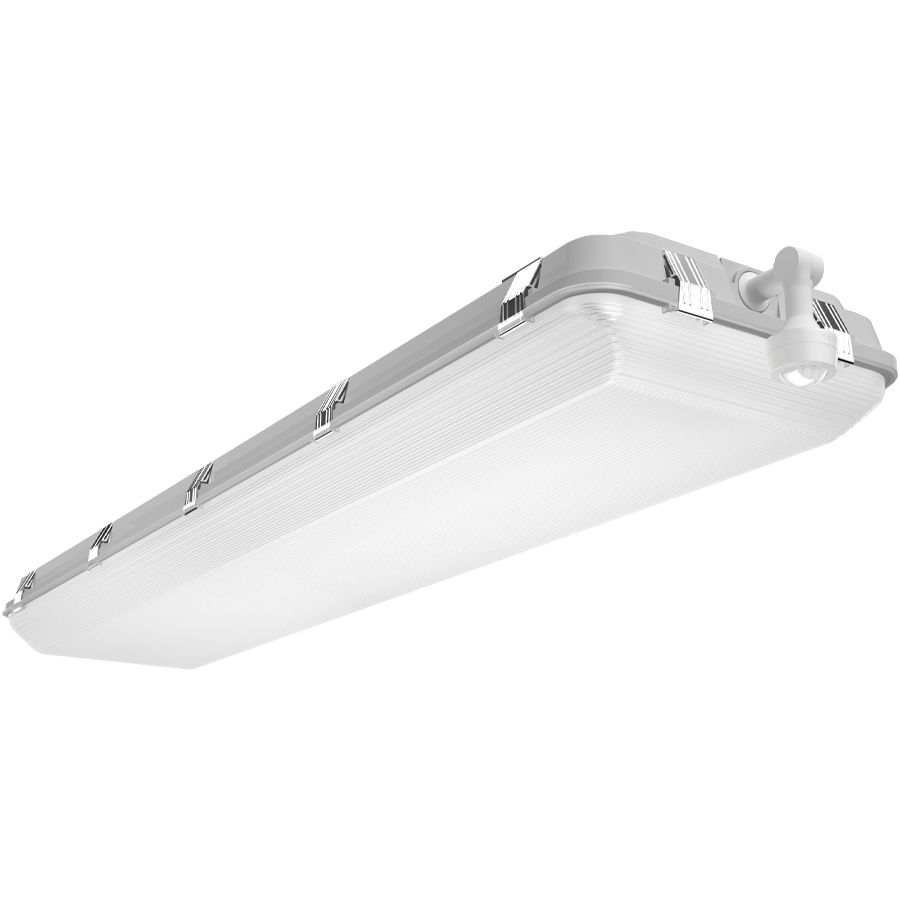

WHALE4H/PIR/E
WHALE4H/PIR/E
265W 3500/4000/5000K
- NSF certified for use in food-preparation facilities
- 100,000-Hour LED lifespan
- DLC Premium Listed
- IP67 Rated for Wet Locations
- NEMA 4X Rating Listed
- 5-Year, limited warranty
Performance
| Watts | 265/225/145W |
| Color Temp | 3500/4000/5000K |
| Lumens | 21,705-38,081 lm |
| Efficacy | 146.5-163 lm/W |
| Color Accuracy | 84-86 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 2.21A/1.88A/1.21A |
| 208V | 1.27A/1.08A/0.70A |
| 240V | 1.10A/0.94A/0.60A |
| 277V | 0.96A/0.81A/0.52A |
| Input Watts | 134.1-254.1W |
Dimensions
Weight: 23.4 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
NSF
NSF Certified by Public Health and Safety
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP67 for dust and water
NEMA Rating
NEMA 4X rating indicates an enclosure protects against windblown dust and rain, splashing and hose-directed water, and offers additional corrosion resistance.
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
4.78% at 120V, 9.84% at 277V
Power Factor
99.9% at 120V, 97% at 277V
Surge Protection
Ringwave LN4 kV/LN-GND 6 kV
Battery Backup
Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120-277V.
Battery Backup Light Loss Factor
265W: 0.09
225W: 0.11
145W: 0.17
225W: 0.11
145W: 0.17
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Construction
Housing
Impact-resistant polycarbonate* with stainless steel door clips. 1/2" NPS opening for conduit and bushing/cord entry. *Polycarbonate is affected by cleaning agents or other liquids containing partial solvents such as low molecular weight aldehydes and ethers, ketones, esters, aromatic hydrocarbons and perchlorinated hydrocarbons. Click here for a detailed list of damaging chemicals.
Lens
Diffuse polycarbonate lens for low glare and maximum protection
Gaskets
High-temperature silicone gaskets
Cold Weather Starting
The minimum starting temperature is 0°C (32°F)
Maximum Ambient Temperature w/Battery Backup
Suitable for use in up to 122°F ( 50°C)
Installation
Tether Cables are provided for easy installation. Quick connector may be used for quick and easy wiring.
Green Technology
Mercury and UV free. RoHS-compliant components.
Finish
Formulated for high durability and long-lasting color
Installation
Mounting
Quick-mount, stainless steel snap on brackets supplied for surface mounting. V-Hook brackets supplied standard for suspending the fixture.
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
