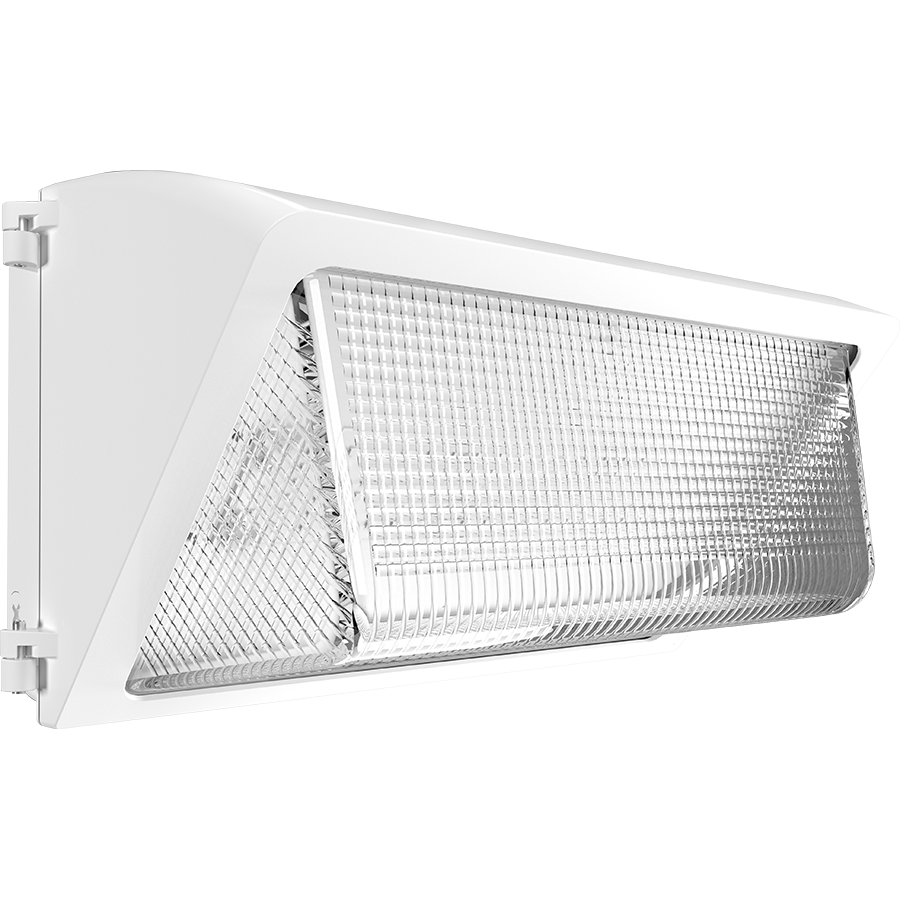

WP3LED93L-730WH
WP3LED93L-730WH
- Affordable wall pack with traditional look
- Ultra-high efficacy
- Covers footprint of large HID wall packs
- 100,000-Hour LED lifespan
Performance
| Watts | 65W |
| Color Temp | 3000K (Warm) |
| Lumens | 9,442 lm |
| Efficacy | 152.8 |
| Color Accuracy | 72 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 61.8W |

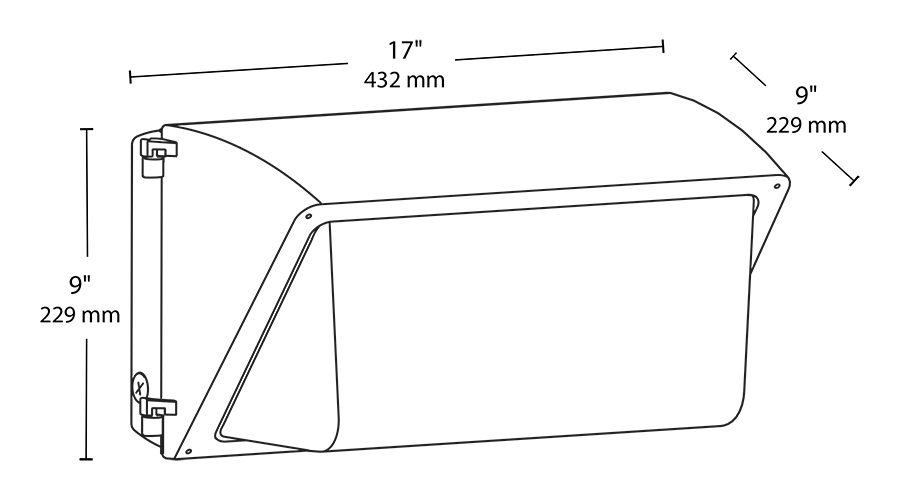

Dimensions
Weight: 24.7 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: P2HPX86I
DLC Product Code: P2HPX86I
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 250W Metal Halide
LED Characteristics
LEDs
Multip-chip, high-output, long-life LEDs
Construction
Cold Weather Starting
The minimum starting temperature is -22°F (-30°C)
Electrical
Driver
Constant Current, 480V, 50/60 Hz, 480V: 0.14A
THD
7.86% at 480V
Power Factor
98.2% at 480V
Recently Viewed Products

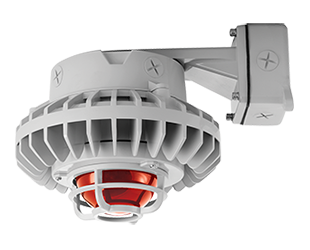

HAZBLED80FR-DG
