WPLEDC104/480
WPLEDC104/480
- High performance LED light engine
- Maintains 70% of initial lumens at 100,000-hours
- Weatherproof high temperature silicone gaskets
- Superior heat sinking with die cast aluminum housing and external fins
- Replaces 400W MH
- 100 up to 277 Volts
- 5-Year, No-Compromise Warranty
Performance
| Watts | 104W |
| Color Temp | 5000K (Cool) |
| Lumens | 14,268 lm |
| Efficacy | 128.8 |
| Color Accuracy | 71 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 110.8W |
Dimensions
Weight: 26.0 lbs
Technical Specifications
Compliance
UL Listed
UL Suitable for Wet Locations as Uplight and Downlight Wall Mount Only
IP Rating
Ingress protection rating of IP66 for dust and water
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: P93HJC7F
DLC Product Code: P93HJC7F
LED Characteristics
LEDs
Four multi-chip, high-output, long-life LEDs
Electrical
Driver
Constant current, Class 1, 480V, 50/60 Hz, 4kV Surge Protection, 480V: 0.4A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
17.64% at 480V
Power Factor
93.3% at 480V
Starting/Operating Amps
480V = 0.26A.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Recently Viewed Products

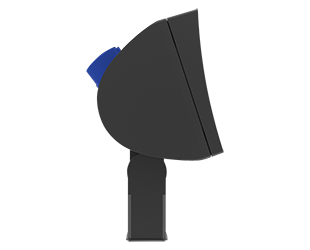

FXLED105SF/480/7PR/PCT4
