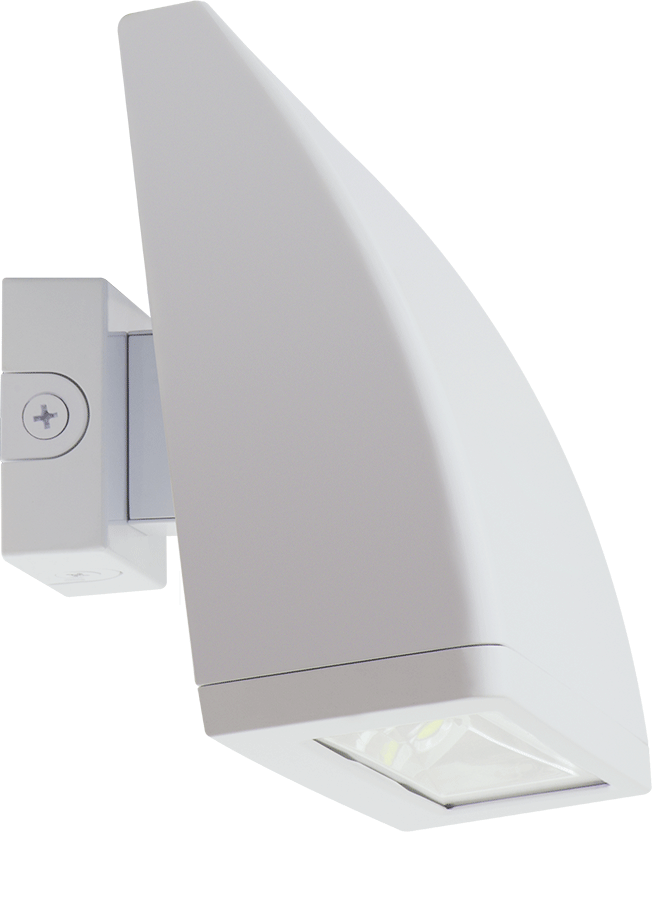

WPLEDC104YW/BL
WPLEDC104YW/BL
- High performance LED light engine
- Maintains 70% of initial lumens at 100,000-hours
- Weatherproof high temperature silicone gaskets
- Superior heat sinking with die cast aluminum housing and external fins
- Replaces 400W MH
- 100 up to 277 Volts
- 5-Year, No-Compromise Warranty
Performance
| Watts | 104W |
| Color Temp | 3000K (Warm) |
| Lumens | 13,630 lm |
| Efficacy | 126.8 lm/W |
| Color Accuracy | 72 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.95A |
| 208V | 0.59A |
| 240V | 0.51A |
| 277V | 0.44A |
| Input Watts | 107.5W |

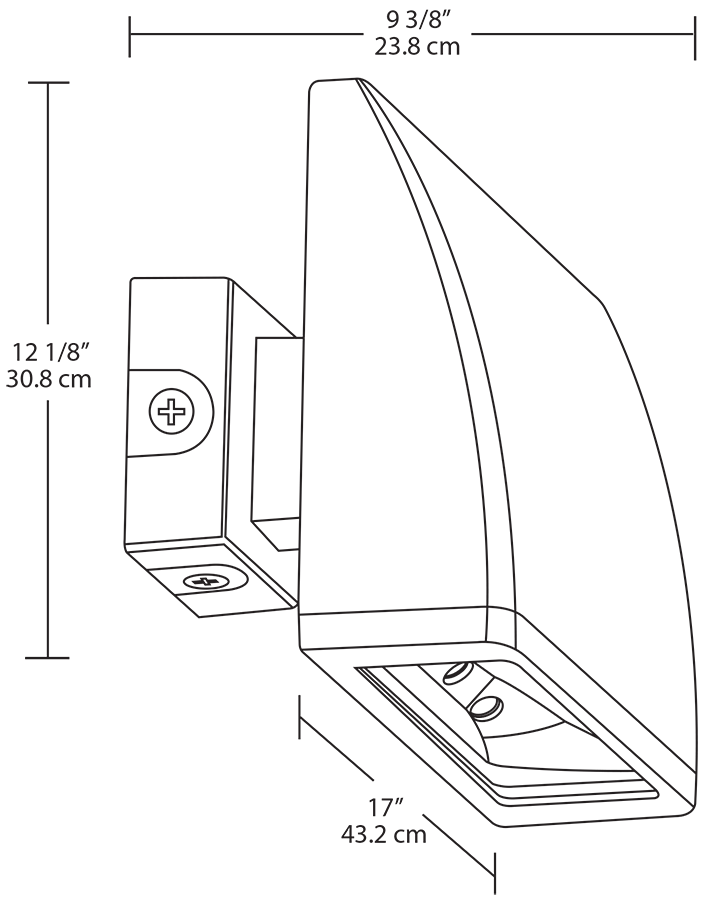

Dimensions
Weight: 26.0 lbs
Technical Specifications
Other
Bi-Level Operation
Allows 50% and 100% output modes
Compliance
UL Listed
UL Suitable for Wet Locations as Uplight and Downlight Wall Mount Only
IP Rating
Ingress protection rating of IP66 for dust and water
LED Characteristics
LEDs
Four multi-chip, high-output, long-life LEDs
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Electrical
Driver
Two drivers, Constant current, Class 2, 100-277V, 50/60 Hz, 6kV Surge Protection, 700mA, 100-277V
THD
5.18% at 120V, 7.83% at 277V
Power Factor
99.6% at 120V, 92.2% at 277V
Recently Viewed Products

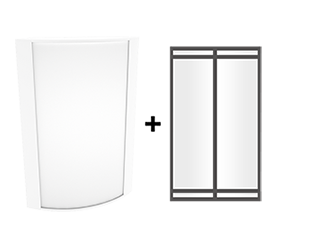

HALV10L940-FG1-W/BL
