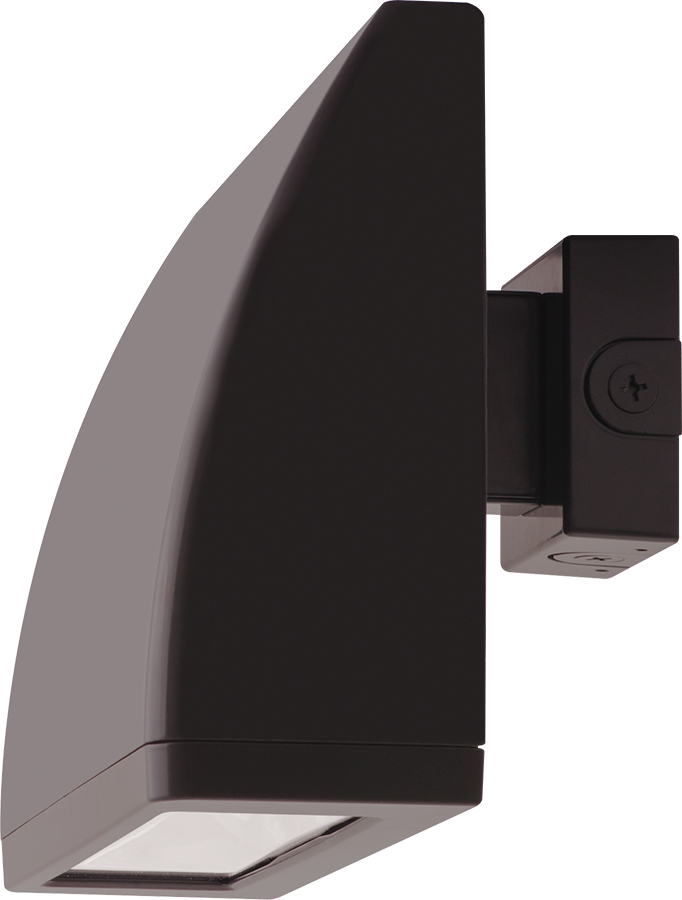

WPLEDFC104
WPLEDFC104
- High performance LED light engine
- Maintains 70% of initial lumens at 100,000-hours
- Weatherproof high temperature silicone gaskets
- Superior heat sinking with die cast aluminum housing and external fins
- Replaces 400W MH
- 100 up to 277 Volts
- 5-Year, No-Compromise Warranty
Performance
| Watts | 104W |
| Color Temp | 5000K (Cool) |
| Lumens | 14,329 lm |
| Efficacy | 132.8 |
| Color Accuracy | 71 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.95A |
| 208V | 0.59A |
| 240V | 0.51A |
| 277V | 0.44A |
| Input Watts | 107.9W |
Dimensions
Weight: 27.4 lbs
Technical Specifications
Compliance
UL Listed
UL Suitable for Wet Locations as Uplight and Downlight Wall Mount Only
IP Rating
Ingress protection rating of IP66 for dust and water
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
LED Characteristics
LEDs
Four multi-chip, high-output, long-life LEDs
Electrical
Driver
Constant current, Class 1, 120-277V, 50/60 Hz, 4kV Surge Protection, 120V: 0.95A, 208V: 0.59A, 240V: 0.51A, 277V: 0.44A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
4.86% at 120V, 6.44% at 277V
Power Factor
99.7% at 120V, 92.2% at 277V
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Housing
Precision die-cast aluminum housing, door frame arm and wall bracket
