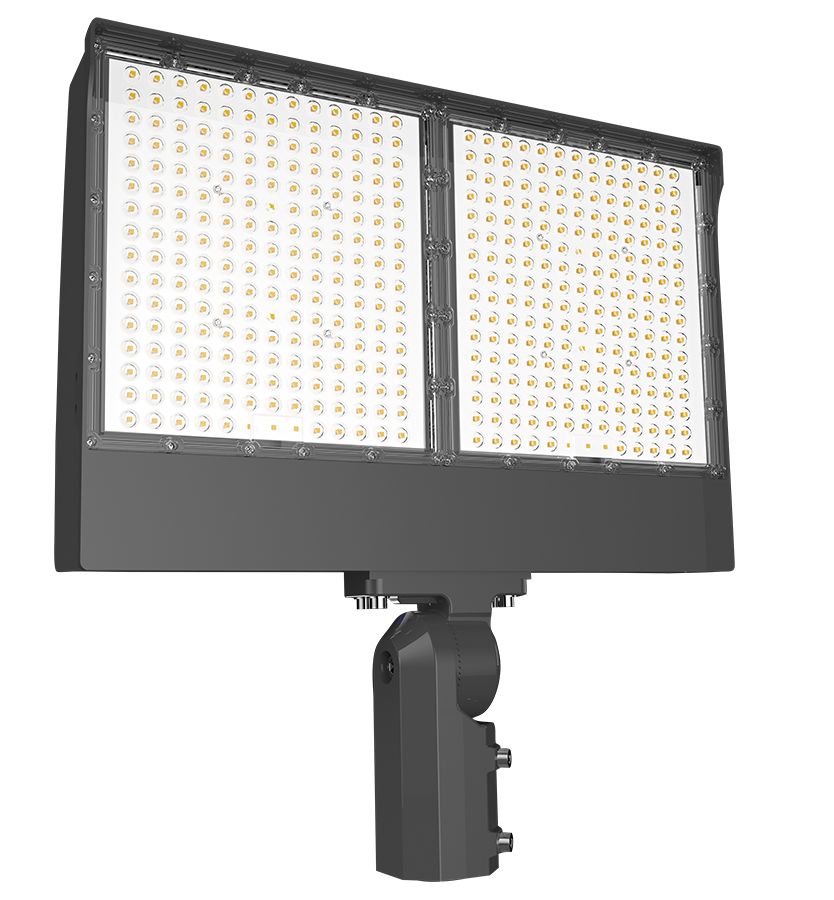

X17XFU330SF/PCT
X17XFU330SF/PCT
330W 3000/4000/5000K
- 3-Way field adjustability
- 0-10V Dimming, standard
- 100,000-hour LED lifespan
- 5-Year, limited warranty
Performance
| Watts | 330W |
| Color Temp | 3000/4000/5000K |
| Lumens | 28,950-49,131 lm |
| Efficacy | 136.5-175.6 lm/W |
| Color Accuracy | 81-83 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 2.63A/2.06A/1.45A |
| 208V | 1.52A/1.19A/0.83A |
| 240V | 1.32A/1.03A/0.72A |
| 277V | 1.14A/0.89A/0.63A |
| Input Watts | 173.61-328.73W |
Dimensions
Weight: 20.6 lbs
Technical Specifications
Field Adjustability
3-Way Field Adjustable
Field Adjustable Light Output:
330/250/175W (factory default 330W)
Color temperature (selectable by 3000K, 4000K and 5000K)
330/250/175W (factory default 330W)
Color temperature (selectable by 3000K, 4000K and 5000K)
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP65 for dust and water
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Electrical
Driver
330W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 2.63A, 208V: 1.52A, 240V: 1.32A, 277V: 1.14A
250W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 2.06A, 208V: 1.19A, 240V: 1.03A, 277V: 0.89A
175W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 1.45A, 208V: 0.83A, 240V: 0.72A, 277V: 0.63A
250W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 2.06A, 208V: 1.19A, 240V: 1.03A, 277V: 0.89A
175W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 1.45A, 208V: 0.83A, 240V: 0.72A, 277V: 0.63A
Dimming Driver
Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.
THD
7.62% at 120V, 8.96% at 277V
Power Factor
99.9% at 120V, 95.5% at 277V
Photocell
120-277V Twistlock photocell included. Photocell is compatible with 120-277V.
Surge Protection
CM: 10 kV
DM: 6 kV
DM: 6 kV
Shorting Cap
Shorting Cap included for Twistlock Receptacle
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Ambient Temperature
Max Power Temp Rating: 104°F (40°C )
Middle Power Temp Rating: 47°C (116°F)
Low Power Temp Rating: 53°C (128°F)
Middle Power Temp Rating: 47°C (116°F)
Low Power Temp Rating: 53°C (128°F)
Housing
Precision die-cast aluminum
Lens
Tempered glass
Reflector
Polycarbonate
Tilt Increment
Rotates in 6 degree increments
Effective Projected Area
EPA = 1.7
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Slipfitter with 180° pivot available for mounting on 2 3/8" tenon
Optical
NEMA Type
NEMA Beam Spread 7H x 6V
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Performance
Wattage Equivalency
Equivalent to 1,000W Metal Halide
