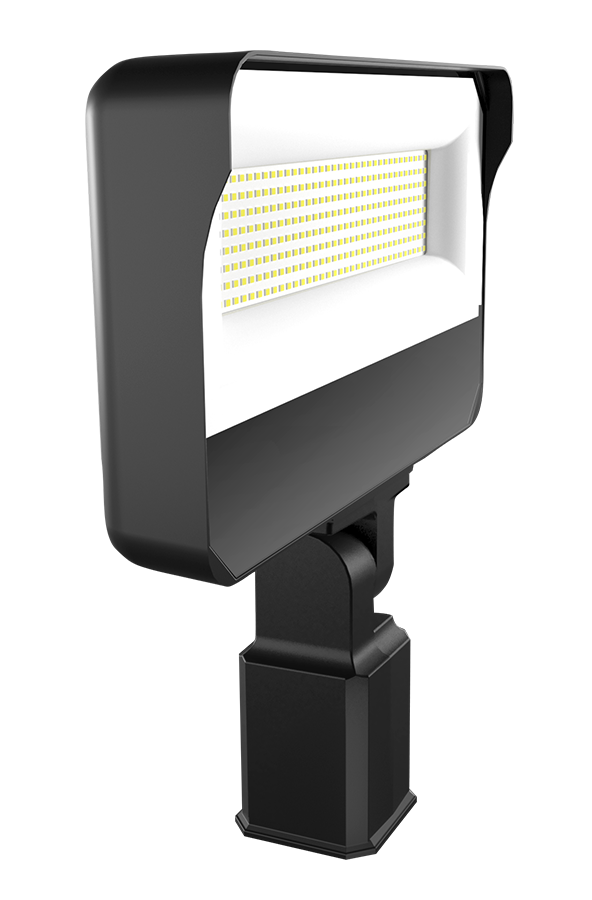

X34-195LSF/U
X34-195LSF/U
- Versatile, general-purpose floodlight
- 7H x 7V NEMA distribution
- 0-10V dimming
- IP65 rating protects against dust and water
- 50,000-Hour LED lifespan
Performance
| Watts | 160W |
| Color Temp | 5000K (Cool) |
| Lumens | 20,945 lm |
| Efficacy | 141.1 lm/W |
| Color Accuracy | 82 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 1.26A |
| 208V | 0.77A |
| 240V | 0.67A |
| 277V | 0.56A |
| Input Watts | 148.4W |

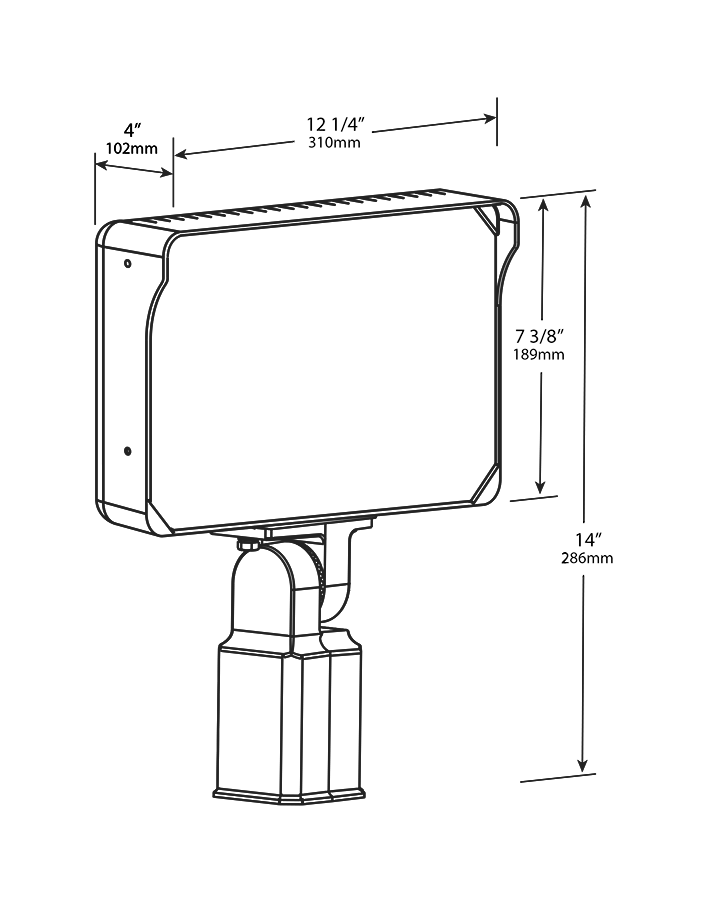

Dimensions
Weight: 10.8 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for ground mounting.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP65 for dust and water
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PWDK3YFS
DLC Product Code: PWDK3YFS
Electrical
Driver
Constant Current, 120-277V, 50/60 Hz, 120V: 1.26A, 208V: 0.77A, 240V: 0.67A, 277V: 0.56A
Dimming Driver
Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.
THD
4.67% at 120V, 5.43% at 277V
Power Factor
99.8% at 120V, 96.6% at 277V
Optical
NEMA Type
NEMA Beam Spread 7H x 7V
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
