A34-3T80/WS4
Performance
| Watts | 80W |
| Color Temp | 5000K (Cool) |
| Lumens | 10,323 lm |
| Efficacy | 130.2 |
| Color Accuracy | 84 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.70A |
| 208V | 0.39A |
| 240V | 0.34A |
| 277V | 0.31A |
| Input Watts | 79.3W |
Dimensions
Weight: 11.4 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
T24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-0VBQ5N
DLC Product Code: S-0VBQ5N
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.70A, 208V: 0.39A, 240V: 0.34A, 277V: 0.31A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 5%.
THD
3.34% at 120V, 6.37% at 277V
Power Factor
99.7% at 120V, 96.1% at 277V
Performance
Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Recently Viewed Products
IVAFT-75LPA740GH/WS
Area Lights 7972 Lumens Ivaft Forward Throw 67W Universal Pole Mount 70Cri 4000K Roadway Gray 347-480V 0-10V Dimming 8 Feet Lens Wattstopper Sensor

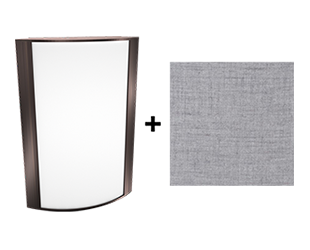

HALVS18L930-LH-A/LC
