CANVAS78SFN/BL
CANVAS78SFN/BL large main
  • Replaces 250W MH Floodlights
  • NEMA Type 6H x 4V ideal for signage & facades
  • Ultra-low field-to-beam ratio concentrates light where it's required
  • Microprismatic diffusion lens optimizes light output without glare
  • Superior thermal management with patent-pending "Airflow" technology
  • 100,000-Hour LED lifespan
 View Technical Specs
View Price & Availability
Performance
Watts 78W
Color Temp 4000K (Neutral)
Lumens 10,458 lm
Efficacy 135.5 lm/W
Color Accuracy 72 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.67A
208V 0.38A
240V 0.33A
277V 0.31A
Input Watts 77.2W
Dimensions
Link to Dimension Drawing

Weight: 26.6 lbs

Technical Specifications
Other
CANVAS78SF with Bi-Level Operation
Allows 33%-66%-100% output modes
Compliance
UL Listed
Suitable for wet locations. Suitable for ground mounting.
IP Rating
Ingress protection rating of IP66 for dust and water
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Construction
Effective Projected Area
EPA = 1.2
LED Characteristics
LEDs
Multi-chip, high-output, long-life LEDs
Electrical
Driver
Constant current, Class2, 100-277V. 50/60 Hz, 6kV Surge Protection, 120-277V, 120V: 0.67A, 208V: 0.38A, 240V: 0.33A, 277V: 0.31A
THD
2.74% at 120V, 8.11% at 277V
Power Factor
99.8% at 120V, 92.9% at 277V

Recently Viewed Products

This is a link to the product CANVAS78SFN/BL CANVAS78SFN/BL
Floodlights 10458 Lumens Canvas 78W Slipfitter Mount 4000K Bi-Level Bronze
This is a link to the product A17-4T200N A17-4T200N
Arealights 29214.4 Lumens A17 Type Iv 200W Led 120V-277V Pole Mount Bronze

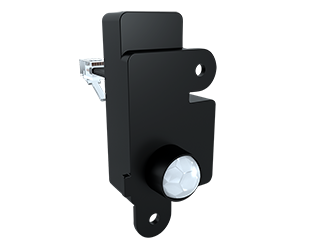

This is a link to the product LCLCSENSE/P/EG/A/2 LCLCSENSE/P/EG/A/2
