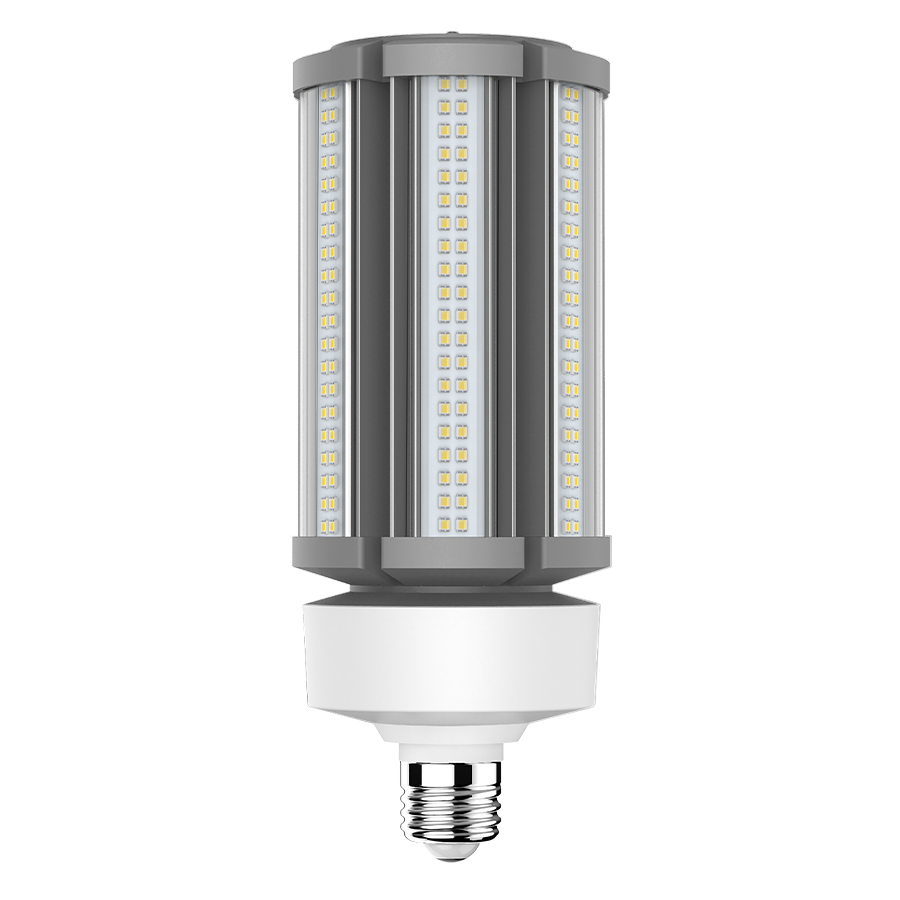

HID-54-E26-840-BYP-PT
HID-54-E26-840-BYP-PT
- Replacement for traditional Metal Halide or High Pressure Sodium HID Lamps
- Active Cooling: Internal sensor overheat and engaged will automatically reduce output to 70% rated wattage until the sensor cools and will light up again to 100%
- Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- Rated for use in enclosed and open fixtures in dry or damp locations
- 4kV surge protection built in
- 50,000 hour Lifespan
- Environmentally friendly, no mercury used
- UL Listed, UL Classified
- Non-Dimmable
- 5 Year No Compromise Warranty
Performance
| Watts | 54W |
| Color Temp | 4000K |
| Lumens | 8,100 lm |
| Efficacy | 150 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 100-277V |
| Power Factor | >0.9 |
| Flicker | N/A |
| THDi | <20% |
Dimensions
Weight: 1.6 lbs
Technical Specifications
Performance
Product Type
HID Replacement
Input Wattage
54W
Lumens
8,100lm
Efficacy
150lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
200W
LED Characteristics
Color Accuracy (CRI)
80
Color Temperature
4000K
Beam Angle
360°
Construction
Shape
Post Top
Enclosure Material
Polycarbonate & Metal heat sink
Housing Finish
White
Installation
Base Type
E26 Edison
Installation Method
UL Type B, Ballast Bypass
Burning Position
Universal
Electrical
THD
<20%
Power Factor
>0.9
Input Voltage
100-277V
Operating Frequency
60 Hz
Operating Temperature
-30°C to 60°C
Surge Protection
4 kV
Other
Technology EQ
Metal Halide or High Pressure Sodium
Compliance
Listings
UL Listed, UL Classified
Environment
Damp / Enclosed
IP Rating
IP64
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Certification Model Number
H10032(HID-54-E26-840-BYP-PT)
