IVAT2-75LPA740ZU/7PR
Performance
| Watts | 67W |
| Color Temp | 4000K (Neutral) |
| Lumens | 7,484 lm |
| Efficacy | 111.7 lm/W |
| Color Accuracy | 73 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.58A |
| 208V | 0.34A |
| 240V | 0.29A |
| 277V | 0.25A |
| Input Watts | 67W |
Dimensions
Weight: 14.2 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Title 24 Compliant
An IVELOT edge-lit area light can be used with a motion sensor or photocell control option to comply with 2016 Title 24 Part 6 Section 130.2 (a,b,v)
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-GDPZ7M
DLC Product Code: S-GDPZ7M
Electrical
Driver
Class 2, 50/60Hz, 120-277V, 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
12.82% at 120V, 13.68% at 277V
Power Factor
98.7% at 120V, 93.4% at 277V
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations at 25°C
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Recently Viewed Products
IVAT2-75LPA740ZU/7PR
Area Lights 7484 Lumens Ivat2 Type Ii 67W Universal Pole Mount 70Cri 4000K Bronze 120V-277V 0-10V Dimming 7-Pin Receptacle
IVAFT-45LPA750WU/WS4
Area Lights 4928 Lumens Ivaft Forward Throw 38W Universal Pole Mount 70Cri 5000K White 120V-277V 0-10V Dimming 40 Feet Lens Wattstopper Sensor

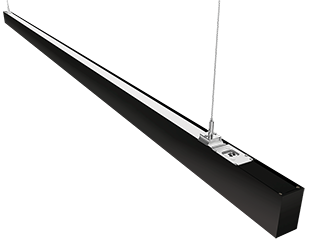

BOA8PLUB/PIR/E
