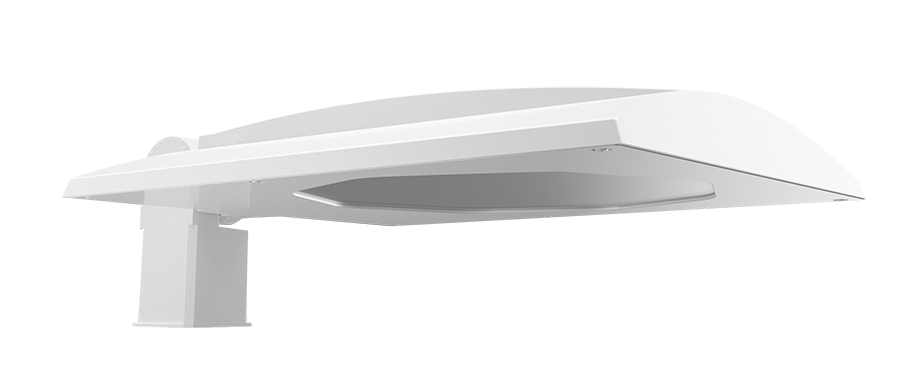

IVAT2-75LSF730WU
Performance
| Watts | 67W |
| Color Temp | 3000K (Warm) |
| Lumens | 7,537 lm |
| Efficacy | 112.3 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.58A |
| 208V | 0.34A |
| 240V | 0.29A |
| 277V | 0.25A |
| Input Watts | 67.1W |
Dimensions
Weight: 12.5 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Title 24 Compliant
An IVELOT edge-lit area light can be used with a motion sensor or photocell control option to comply with 2016 Title 24 Part 6 Section 130.2 (a,b,v)
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-1BJI7R
DLC Product Code: S-1BJI7R
Electrical
Driver
Class 2, 50/60Hz, 120-277V, 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
12.82% at 120V, 13.68% at 277V
Power Factor
98.7% at 120V, 93.4% at 277V
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations at 25°C
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
