IVAT3-45LWM740WH/WS2LC
IVAT3-45LWM740WH/WS2LC large main
  • 0-10V Dimming, standard
  • 100,000-Hour LED lifespan
 View Technical Specs
View Price & Availability
Performance
Watts 38W
Color Temp
Lumens 4,820 lm
Efficacy 115 lm/W
Color Accuracy
L70 Lifespan
Type Constant Current
120V
208V
240V
277V
Input Watts 41.9W
Dimensions
Link to Dimension Drawing

Weight: 20.0 lbs

Technical Specifications
Lightcloud
Lightcloud Controller Installed
Fixture, Zone, and plug-load control from one powerful device. Capable of switching, 0-10V dimming, power monitoring. Can also be used to extend the range of the Lightcloud mesh network. Attach to fixture, junction box, or electrical panel. Learn more at www.lightcloud.com
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Title 24 Compliant
An IVELOT edge-lit area light can be used with a motion sensor or photocell control option to comply with 2016 Title 24 Part 6 Section 130.2 (a,b,v)
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Electrical
Driver
Class 2, 50/60Hz, 480V 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
10.6% at 480V
Power Factor
96.5% at 480V

Recently Viewed Products

This is a link to the product IVAT3-45LWM740WH/WS2LC IVAT3-45LWM740WH/WS2LC
Ivelot T3 40W 4500L Wall 4000K 70 Cri White 347-480V Dim Ws2 Lc

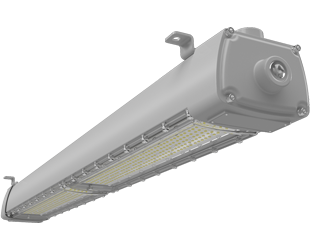

This is a link to the product HAZSR4/E HAZSR4/E
Haz Strip 4Ft 80W 5000K Battery Backup 120-277V Surface Mount Gray C1D2

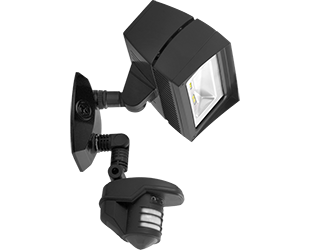

This is a link to the product FFLED18N/STL3 FFLED18N/STL3
Flood 2416 Lumens Lstealth Ffled18 18W 4000K Neutral Led With Stealth 360 Sensor Bronze

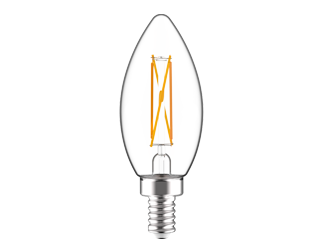

This is a link to the product B11-5-E12-922/30-F-C-WGD B11-5-E12-922/30-F-C-WGD
