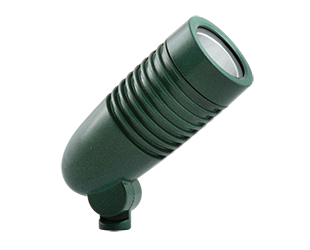

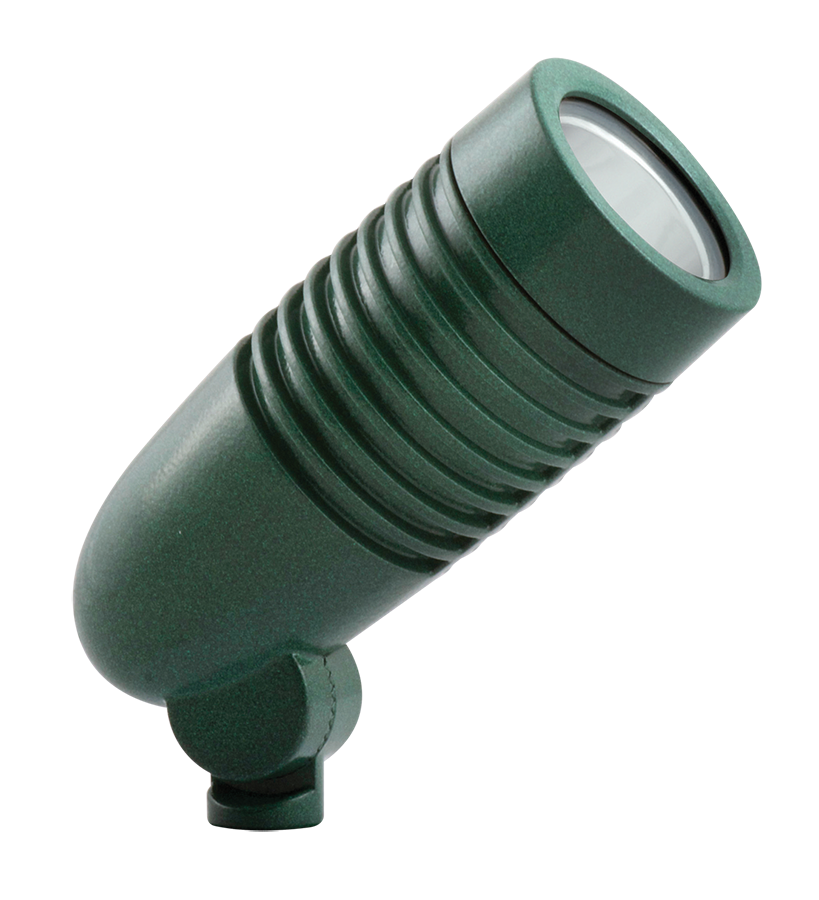

LFLED4LVVG
LFLED4LVVG
- Works with existing 12V AC landscape lighting systems
- Replaces 35W MR16 halogen
- Reduces energy consumption by 85%
- Optional spot and narrow spot reflector kits available
- 100,000-Hour LED lifespan
Performance
| Watts | 4W |
| Color Temp | 4800K (Cool) |
| Lumens | 500 lm |
| Efficacy | 111.1 lm/W |
| Color Accuracy | 70 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 4.5W |
Dimensions
Weight: 1.6 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for ground mounting.
Optical
NEMA Type
NEMA Beam Spread 4H x 4V
Spot Lens
Optional spot lens enables a tool-less conversion to a NEMA Type 3H x 3V. Great for accent lighting or grazing buildings for an artistic touch. Spot reflector kit available here.
Narrow Spot Lens
Optional narrow spot lens enables a tool-less conversion to a NEMA Type 3H x 2V. Great for accent lighting or grazing buildings for an artistic touch. Narrow spot reflector kit available here.
Construction
Lens
Microprismatic diffuser produces a smooth distribution and low glare
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Thermal Management
Optimized using computational fluid dynamics so ftware to ensure long LED and driver lifespan
Housing
Precision die-cast aluminum housing, lens frame and mounting arm
Gaskets
High-temperature silicone
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
LED
Multi-chip, high-output, long-life LED
Color Consistency
4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
Electrical
Driver
Class 2, 50/60 Hz, 12VAC Max, 0.5A
Voltage
12V AC
Other
Wiring
30" SPT1 zip cord included. Transformers provided by others.
Patents
The design of the LFLED is protected by Taiwan Patent 01510966 and pending patents in US, Canada, China, and Mexico
