LOT2T160NW/D10/UPA/5PR
LOT2T160NW/D10/UPA/5PR large main
DISCONTINUED
  • Lightweight design and low EPA minimize pole load
  • Best-in-class 5-G vibration rating
  • 100,000-hour LED lifespan
 View Technical Specs
Performance
Watts 160W
Color Temp 4000K (Neutral)
Lumens 21,305 lm
Efficacy 134.9 lm/W
Color Accuracy 73 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 1.35A
208V 0.78A
240V 0.67A
277V 0.59A
Input Watts 157.9W
Dimensions
Link to Dimension Drawing

Weight: 20.9 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PEWYECVK
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 1.35A, 208V: 0.78A, 240V: 0.67A, 277V: 0.59A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
8.76% at 120V, 13.56% at 277V
Power Factor
99.5% at 120V, 93.2% at 277V
5-Pin Receptacle
ANSI C136.41 5-pin receptacle, compatible with wireless control systems
Surge Protection
L-N 4 kV; L-L, L-GND 6 kV
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Optical
IES Classification
The Type II distribution is meant for lighting large areas, located by the roadside. Typically found on wide walkways, on ramps, entrace roadways and bike paths.

Recently Viewed Products

This is a link to the product LOT2T160NW/D10/UPA/5PR LOT2T160NW/D10/UPA/5PR
Area Lights 21305 Lumens Lotblaster 160W 4000K Type Ii 0-10V Dimming 120V-277V Universal Pole Adapter 5-Pin Receptacle White

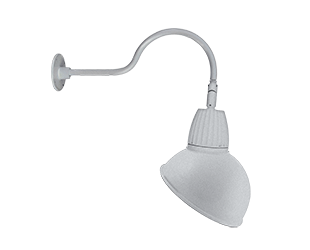

This is a link to the product GN1LED13NSADS GN1LED13NSADS
