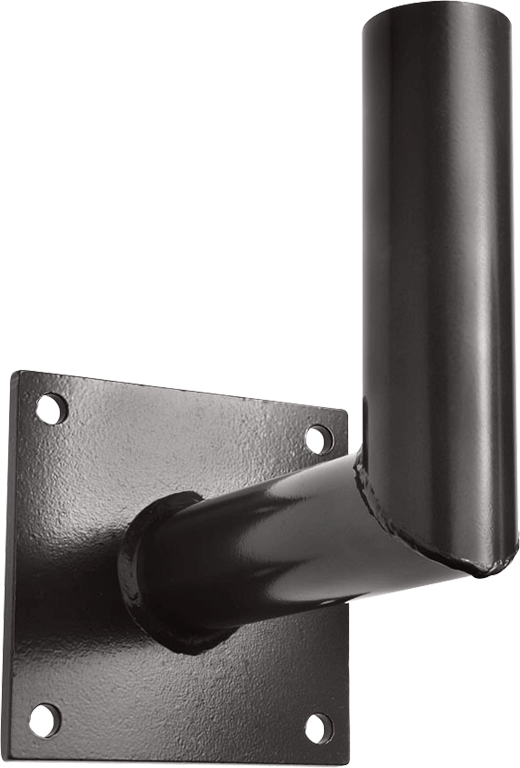

MAB
MAB large main
  • Easy, secure floodlight mounting
  • Double Reinforced weld joints
 View Technical Specs
View Price & Availability

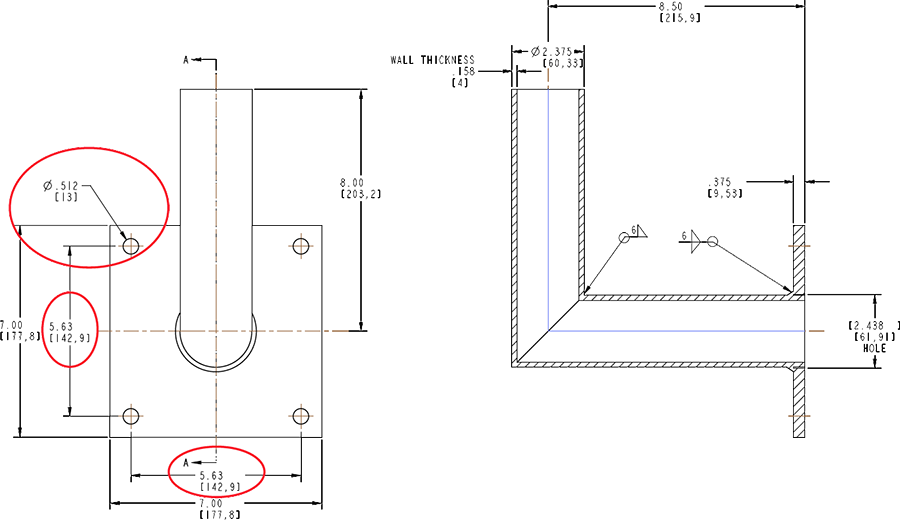

Dimensions
Link to Dimension Drawing

Weight: 10.7 lbs

Technical Specifications
Construction
Finish
Weather resistant polyester powder, bronze
Bullhorns
1 Tenon for slip fitters. Right angle bracket. Bullhorns fit 2 3/8" (6cm) O.D. tenons and accommodate 2 3/8" (6cm) slip fitters. Steel tubing.150" and.200" thick welded with (4) 3/8" bolts for securing to pole.
Slipfitters & Wall Brackets
3/16" thick steel with 1/2" nuts and bolts
Maximum Weight
90 lbs
EPA Maximum Capacity
4.0 per arm

Recently Viewed Products

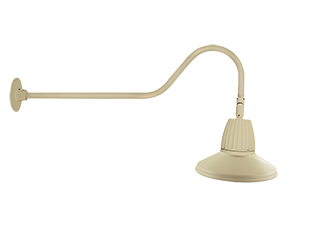

This is a link to the product GN2LED26YSTI GN2LED26YSTI
Decorative 1348 Lumens Gooseneck 26W 3000K 35 Inches Arm Straight Shade Flood 15 Inches Ivory
This is a link to the product GN1LED26NSAD11W GN1LED26NSAD11W
Decorative 1461 Lumens Gooseneck 26W 4000K 24 Inches Arm Angled Dome Spot 11 Inches White
This is a link to the product MAB MAB
Poles Bracket Right Angle Wall Mount 8 1/2 Inch X 8 Inches

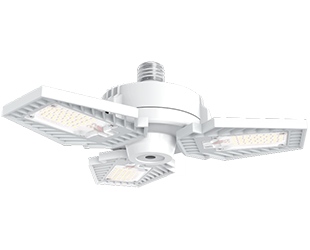

This is a link to the product HID-65-V-E26-850-BYP-GL/LCBR HID-65-V-E26-850-BYP-GL/LCBR
