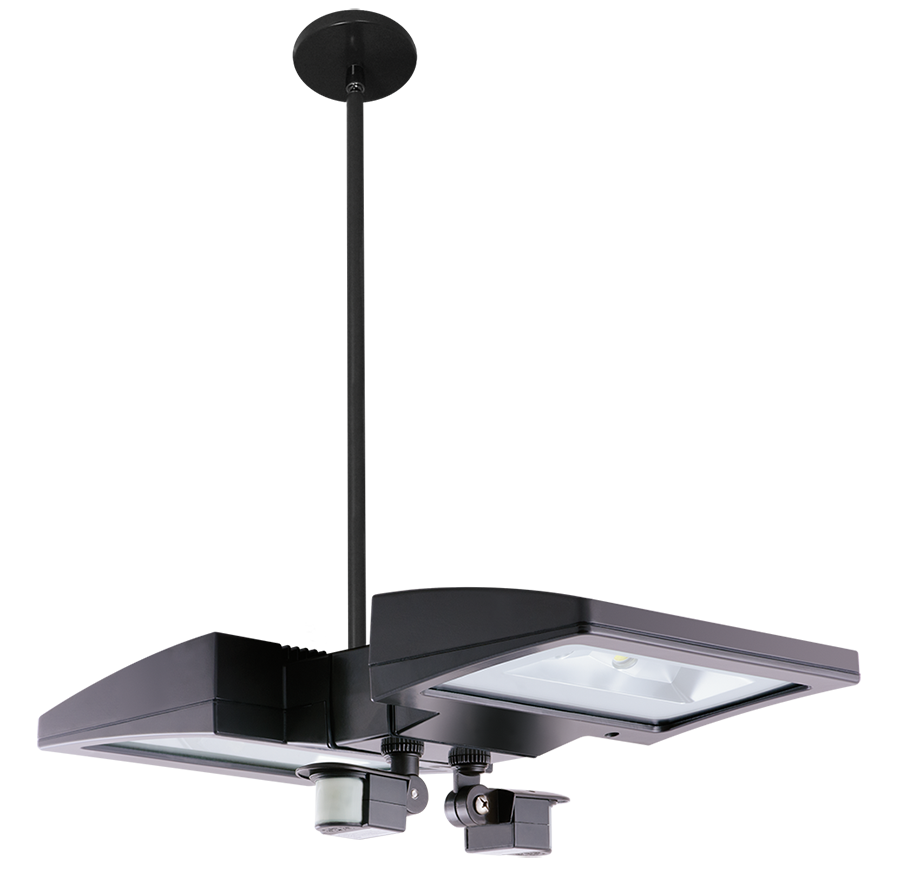

PLED2X26YMS2
PLED2X26YMS2
- Reduce energy usage with motion sensor technology you can rely on
- LED combined with mini sensor for an all-in-one lighting solution
- Great for small spaces like utility closets and storage rooms
- 5-Year, No-Compromise Warranty
Performance
| Watts | 52W |
| Color Temp | 3000K (Warm) |
| Lumens | 4,285 lm |
| Efficacy | 72.6 lm/W |
| Color Accuracy | 82 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.48A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 59W |

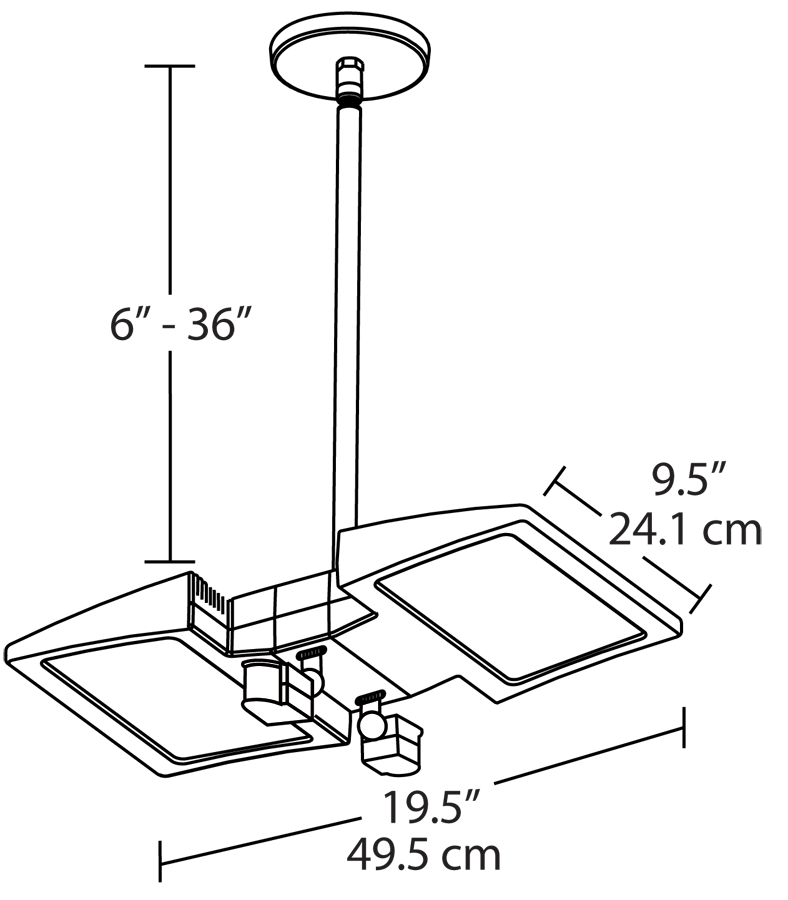

Dimensions
Weight: 10.1 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Installation
Recommended Mounting Height
8-10'
Mounting
3 mounting stems included. 6", 12" and 18" can be combined to achieve a maximum length of 36". 42" of wire supplied. The pendants thread into a hang-straight, leveling the fixture. Pendant outside diameter is 3/4". Threads are 1/4". Circular canopy included.
LED Characteristics
LEDs
(4) 13W Multi-chip high output, long-life LED
Construction
Housing
Precision die-cast aluminum housing and lens framing
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Electrical
Drivers (2)
Constant Current, Class 2, 100V-277V, 50/60 Hz, 6kv Surge Protection, 720mA, 100-277VAC 0.8 Amps, THD less than equal to 20%, Power Factor 99.2%.
